30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 020000001 - 029999999) (1992) AIR INTAKE/FILTRATION-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

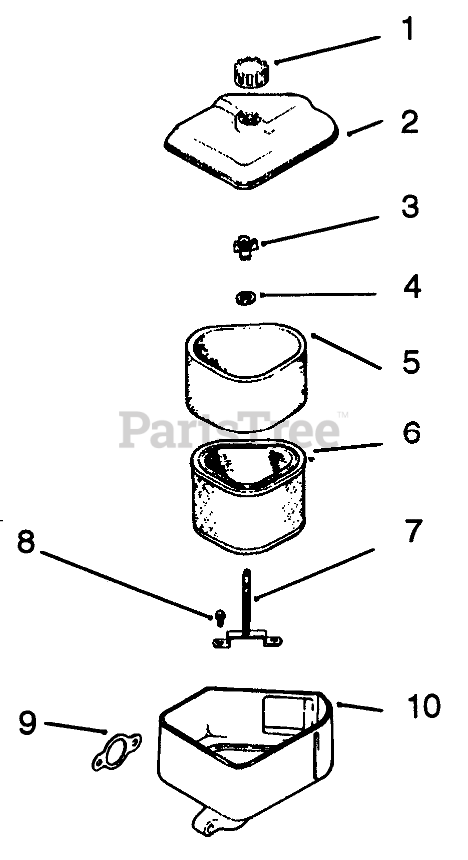

AIR INTAKE/FILTRATION-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title
1

12_341_01

Knob-Cover

$

$

Not available

2

12_096_06

Cover-Air Cleaner

$

$

Not available

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro X-25-63

Washer

$

$

Currently unavailable

5

12_083_08

Element-Precleaner

$

$

Not available

6

12_083_05

Element-Air Cleaner

$

$

Not available

7

12_072_03

Plate-Stud

$

$

Not available

8

12_086_01

Screw

$

$

Not available

9

12_041_02

Gasket

$

$

Not available

10

12_094_01

Base

$

$

Not available

12_113_04

Decal

Note: Not Illustrated.

$

$

Not available
