30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 010000001 - 019999999) (1991) TRACTION DRIVE MOTOR (TORQUMOTOR) Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

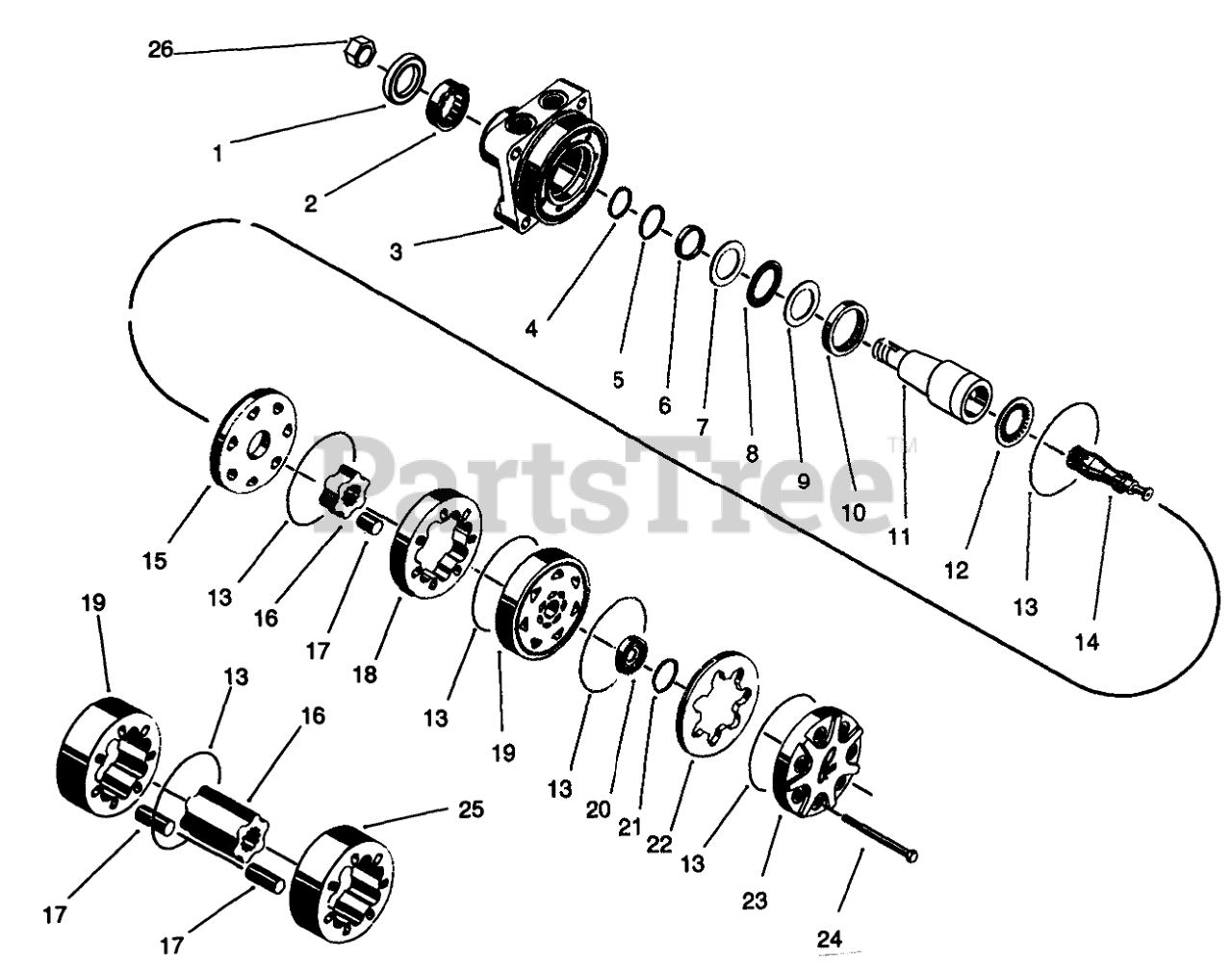

TRACTION DRIVE MOTOR (TORQUMOTOR) Parts Diagram

  • Title
1

Seal ASM

$

$

Not available

4

Washer-Back Up

$

$

Not available

5

Washer-Back Up

$

$

Not available

6

Seal ASM

$

$

Not available

10

Bearing-Inner

$

$

Not available

11

Coupling-Shaft

$

$

Not available

13

"O" Ring

$

$

Not available

14

Link-Drive

$

$

Not available

15

Plate Wear

$

$

Not available

19

Manifold

$

$

Not available

22

Commutator-Ring

$

$

Not available

23

Cover-End

$

$

Not available

24

Bolt-Special

$

$

Not available

25

Stator Half

$

$

Not available

26

Nut

$

$

Not available

Toro SK000090

Kit-Seal (Incl. Ref. #1, 4, 6, 13 & 20)

$

$

Currently unavailable
