30185 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 010000001 - 019999999) (1991) BATTERY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

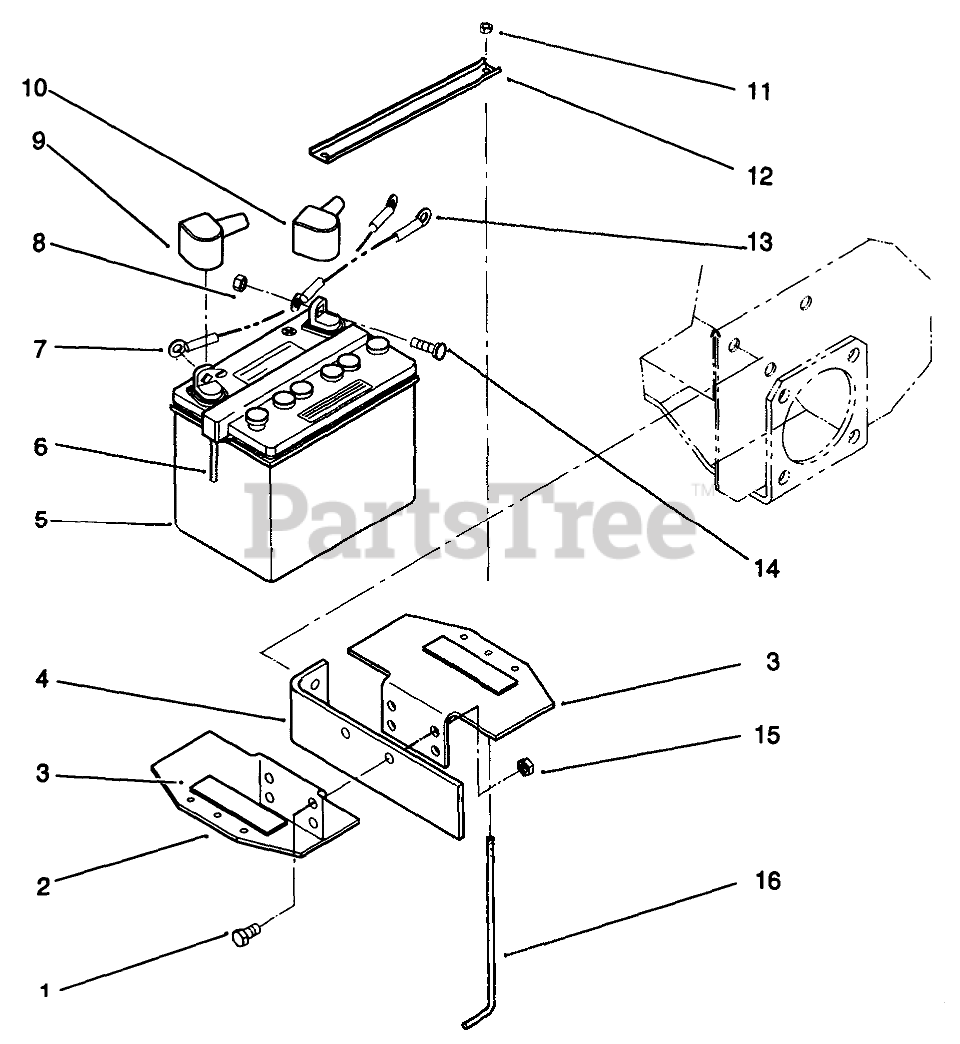

BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 83-4830

Holder-Battery
(Superseded to 92-2350-01)

$

$

Not available

3

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

4

Frame-Carrier (Ref.)

$

$

Not available

5

Toro 49-7030

Battery

$

$

Not available

6

Toro 68-3810

TUBE-VENT

$

$

Not available

7

Toro 54-3093

CABLE-BATTERY, NEGATIVE

$36.99

$

Usually ships in 3-6 days

0

8

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

9

Toro 7470980

Boot-Terminal

$

$

Currently unavailable

10

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 54-2950

BATTERY STRAP R/B

$

$

Not available

13

Toro 28-3893

WIRE ASM

$

$

Not available

14

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0
