30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) 36" DECK ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

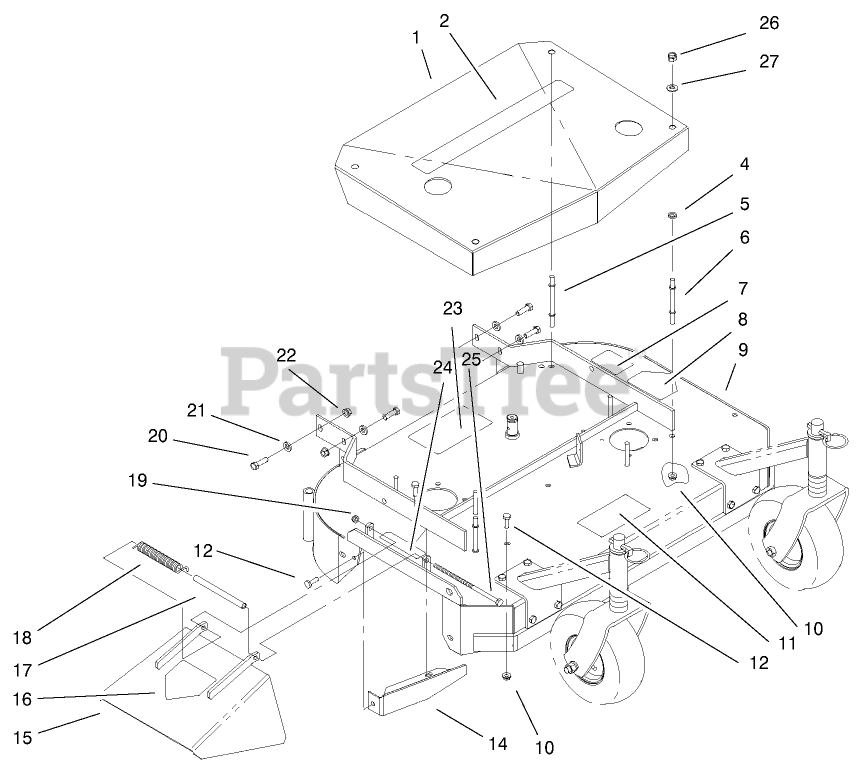

36" DECK ASSEMBLY Parts Diagram

  • Title

1

Toro E304261

Belt Cover w/Decal
(Superseded to 1-304261)

$1028.99

$

Usually ships in 3-6 days

0

2

Toro E323566

Decal-Proline 36
(Superseded to 95-5436)

$27.99

$

Usually ships in 3-6 days

0

4

Toro E323417

Washer
(Superseded to 1-323417)

$3.49

$

In Stock, Qty 20+

0

5

Toro E303536

Stud-Belt Shield(Long)
(Superseded to 1-303536)

$7.99

$

In Stock, Qty 20+

0

6

Toro E303537

Stud-Belt Shield(Short)
(Superseded to 1-303537)

$6.49

$

In Stock, Qty 20+

0

7

Toro E323659

Decal-Torque
(Superseded to 98-5130)

$30.99

$

Usually ships in 3-6 days

0

8

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 103-0035

36" CE DECK W/DECALS ASM

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro E302189

Baffle
(Superseded to 1-302189-01)

$47.99

$

Usually ships in 3-6 days

0

15

Toro E304257

Discharge Chute w/Decal
(Superseded to 1-304257)

$237.99

$

Usually ships in 3-6 days

0

16

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

17

Toro E323572

Spacer
(Superseded to 98-3281)

$

$

Not available

18

Toro E323575

Spring-Deflector
(Superseded to 98-3280)

$27.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-3296

DECAL-ROUTING, BELT

$20.99

$

Usually ships in 3-6 days

0

24

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

25

Toro E800289

Screw-HH
(Superseded to 322-50)

$6.49

$

In Stock, only 4 left!

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
