30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099000001 - 099999999) (1999) DECK, DRIVE PULLEYS & CASTER WHEELS Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

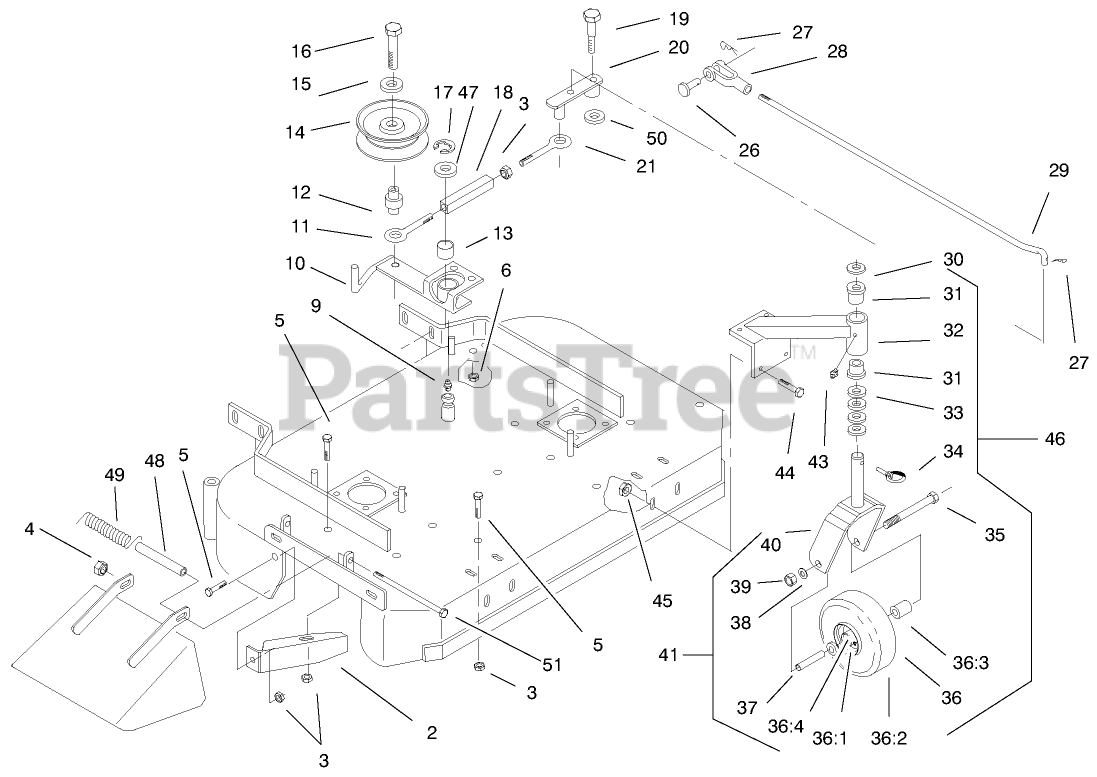

DECK, DRIVE PULLEYS & CASTER WHEELS Parts Diagram

  • Title

2

Toro E302189

Baffle
(Superseded to 1-302189-01)

$49.99

$

Usually ships in 3-6 days

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro E800270

Screw-HH
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

10

Toro E324344

Engagement Arm w/Bushing
(Superseded to 1-324344)

$

$

Not available

11

Toro E303348

Eye Bolt
(Superseded to 1-303348)

$6.49

$

In Stock, Qty 9

0

12

Toro E303434

Bushing
(Superseded to 1-303434)

$14.99

$

In Stock, only 1 left!

0

13

Toro E303144

Bearing
(Superseded to 1-303144)

$5.49

$

In Stock, only 2 left!

0

14

Toro E603843

Pulley-Idler
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

16

Toro E803003

Bolt-Whizlock
(Superseded to 1-803003)

$

$

Not available

17

Toro E808505

Ring-Snap
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 7

0

18

Toro E303236

Turnbuckle Body
(Superseded to 1-303236)

$22.99

$

In Stock, only 3 left!

0

19

Toro E809084

Bolt-Shoulder
(Superseded to 1-809084)

$9.49

$

Usually ships in 3-6 days

0

20

Toro E322211

Assist Arm ASM
(Superseded to 1-321021)

$90.99

$

Usually ships in 3-6 days

0

21

Toro E303238

Eye Bolt
(Superseded to 1-303238)

$6.49

$

In Stock, Qty 7

0

26

Toro E808280

Pin-Clevis
(Superseded to 1-808280)

$2.99

$

In Stock, only 2 left!

0

27

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

28

Toro E303105

Yoke
(Superseded to 1-303105)

$12.99

$

In Stock, only 1 left!

0

29

Toro E323303

Linkage-Assist Arm
(Superseded to 1-323303)

$25.99

$

In Stock, only 2 left!

0

30

Toro E513338

Washer
(Superseded to 1-513338)

$4.49

$

In Stock, Qty 20+

0

31

Toro E303514

Bearing-Flanged
(Superseded to 1-303514)

$12.99

$

In Stock, only 1 left!

0

32

Toro E302194

Support-Caster
(Superseded to 1-302203)

$299.99

$

Usually ships in 3-6 days

0

33

Toro E303314

Spacer
(Superseded to 1-303314)

$6.49

$

In Stock, Qty 5

0

34

Toro E809020

Pin
(Superseded to 1-809020)

$11.99

$

In Stock, only 2 left!

0

35

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

36

Tire and Wheel ASM

$

$

Not available

36:1

Toro E513807

Wheel Hub ASM
(Superseded to 1-513648)

$91.99

$

In Stock, only 1 left!

0

36:2

Toro E513808

Tire
(Superseded to 1-513808)

$43.99

$

In Stock, only 4 left!

0

36:3

Toro E513809

Bearing
(Superseded to 1-513809)

$35.99

$

In Stock, Qty 8

0

36:4

Toro E513810

Bushing
(Superseded to 1-513810)

$5.99

$

In Stock, Qty 17

0

37

Toro E513547

Spacer
(Superseded to 1-513547)

$12.99

$

In Stock, Qty 6

0

38

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

39

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

40

Toro E322145

Fork
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 1 left!

0

41

Toro E322154

Caster Wheel ASM (Incl. Ref. 36-40)
(Superseded to 1-322154)

$

$

Not available

43

Toro E811001

Zerk
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

44

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

45

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

46

Toro E322153

Caster/Mount ASM (Incl. Ref. 31-40)
(Superseded to 1-322153)

$

$

Not available

47

Toro E303352

Spindle Washer
(Superseded to 1-303352)

$2.99

$

In Stock, only 3 left!

0

48

Toro E323572

Spacer
(Superseded to 98-3281)

$

$

Not available

49

Toro E323575

Spring-Deflector
(Superseded to 98-3280)

$28.99

$

Usually ships in 3-6 days

0

50

Toro 80-4980

WASHER-THRUST

$27.99

$

Usually ships in 3-6 days

0

51

Toro E800289

Screw-HH
(Superseded to 322-50)

$6.49

$

In Stock, only 4 left!

0
