30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 089000001 - 089999999) (1998) GUARD-BELT, MUFFLER & REAR DISCHARGE Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

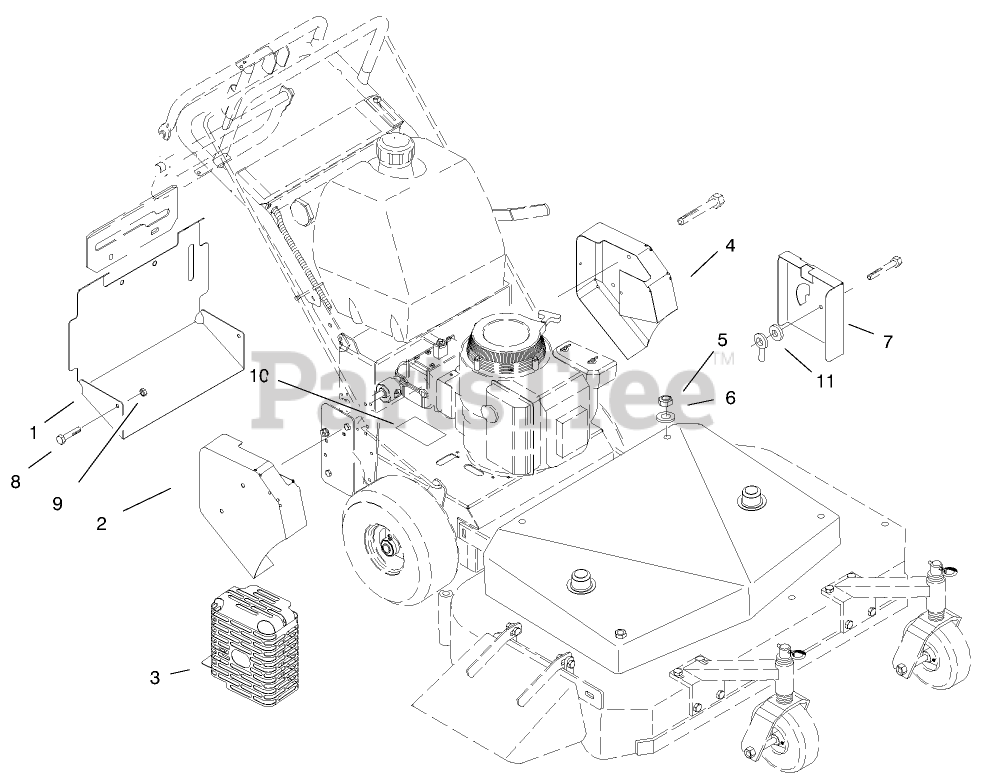

GUARD-BELT, MUFFLER & REAR DISCHARGE Parts Diagram

  • Title
1

Toro E323648

Cover-Rear

$

$

Not available

2

Toro E322220

RH Belt Guard

$

$

Not available

3

Toro E323649

Guard-Muffler
(Superseded to 98-3285-03)

$

$

Not available

4

Toro E322219

LH Belt Guard
(Superseded to 1-322219-01)

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro E323678

Cover-Throttle Linkage
(Superseded to 1-323678-03)

$

$

Not available

8

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 66-2000

Decal-Noise

$

$

Not available

11

Toro E323679

Spacer Throttle

$

$

Not available
