30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 089000001 - 089999999) (1998) DECK, COVER AND DECK DRIVE BELTS Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

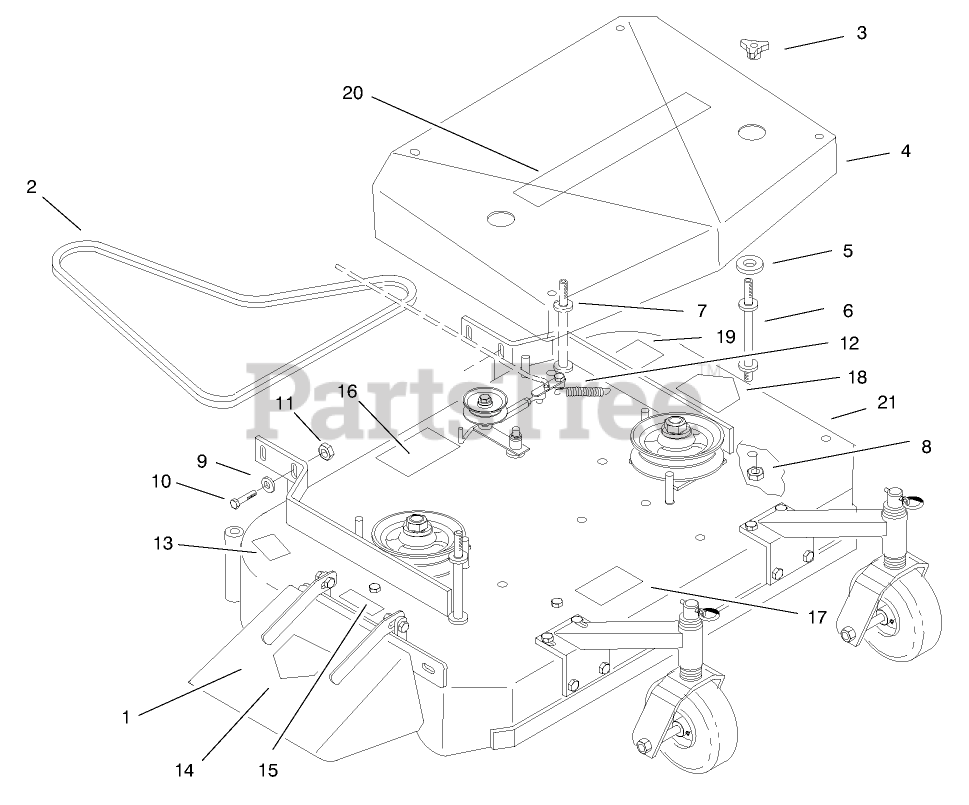

DECK, COVER AND DECK DRIVE BELTS Parts Diagram

  • Title

1

Toro E304257

Discharge Chute w/Decal
(Superseded to 1-304257)

$

$

Not available

2

Toro E323629

Belt-Blade Drive
(Superseded to 1-323629)

$108.99

$

Usually ships in 3-6 days

0

4

Toro E304261

Belt Cover w/Decal
(Superseded to 1-304261)

$1201.99

$

Usually ships in 3-6 days

0

5

Toro E323417

Washer
(Superseded to 1-323417)

$3.49

$

In Stock, Qty 20+

0

6

Toro E303537

Stud-Belt Shield(Short)
(Superseded to 1-303537)

$6.49

$

In Stock, Qty 20+

0

7

Toro E303536

Stud-Belt Shield(Long)
(Superseded to 1-303536)

$7.99

$

In Stock, Qty 20+

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

12

Toro E323608

Spring-Extension
(Superseded to 98-5124)

$11.99

$

Usually ships in 3-6 days

0

13

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

14

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

15

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

16

Toro E323555

Decal-Belt Routing
(Superseded to 98-3296)

$22.99

$

Usually ships in 3-6 days

0

17

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

18

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

19

Toro E323659

Decal-Torque
(Superseded to 98-5130)

$31.99

$

Usually ships in 3-6 days

0

20

Toro E323566

Decal-Proline 36
(Superseded to 95-5436)

$34.99

$

Usually ships in 3-6 days

0

21

Toro E304255

Deck / Decal ASM
(Superseded to 1-304255)

$2295.99

$

Usually ships in 3-6 days

0
