30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 099000001 - 099999999) (1999) IGNITION/ELECTRICAL Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

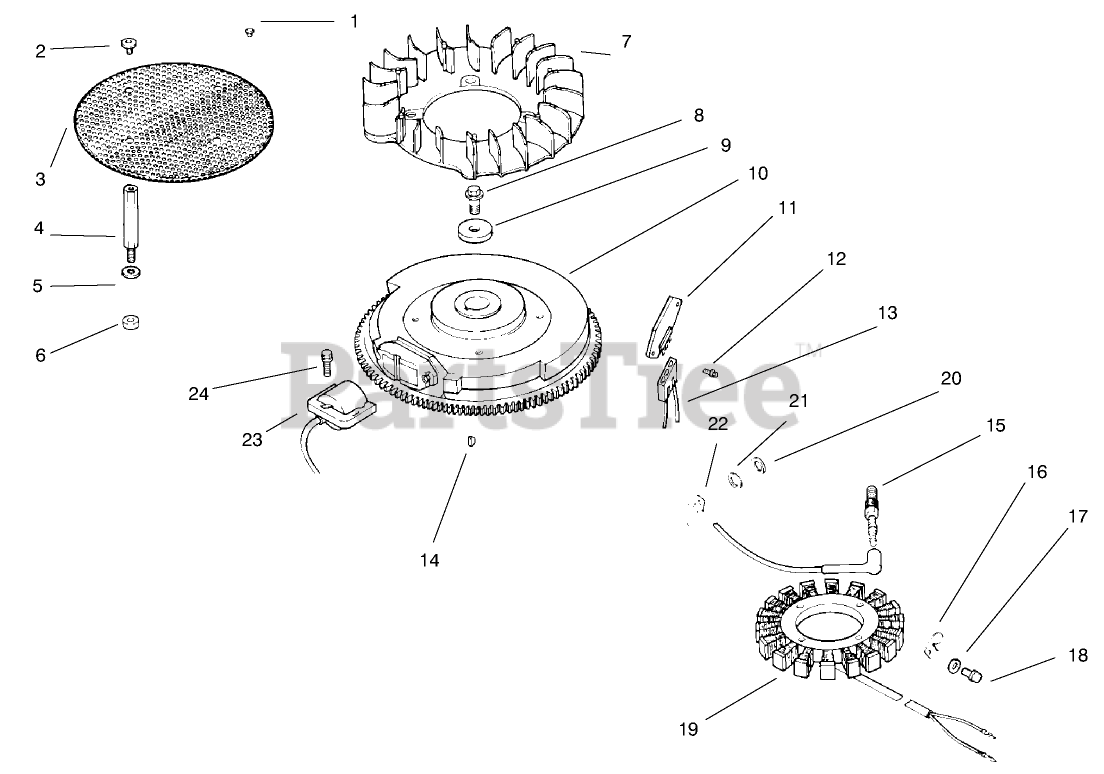

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

2508643

Screw-Set

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

2

Kohler M-0657010

Screw
(Superseded to M-657010)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$130.99

$

Usually ships in 2-5 days

0

3

2416213

Screen-Grass

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

4

2407201

Stud

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

5

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$3.49

$

Usually ships in 2-5 days

0

6

1211201

Spacer

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

7

Kohler 24 157 01

Fan
(Superseded to 24 157 01-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$46.99

$

Usually ships in 2-5 days

0

8

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$3.99

$

In Stock, Qty 12

0

9

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$6.49

$

In Stock, only 2 left!

0

10

2402504

Flywheel

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

11

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

12

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$24.99

$

In Stock, only 1 left!

0

14

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.99

$

In Stock, Qty 6

0

15

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$4.49

$

In Stock, Qty 20+

0

16

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$16.99

$

Usually ships in 2-5 days

0

17

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 3 left!

0

18

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 2 left!

0

19

2408501

Stator-15 Amp

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

20

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 2 left!

0

21

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, only 3 left!

0

22

Kohler 235173

Clip
(Superseded to 235173-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$11.99

$

Usually ships in 2-5 days

0

23

Kohler 24 584 01

Module-Ignition
(Superseded to 24 584 01-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

24

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$2.49

$

In Stock, Qty 20+

0

2417640

Harness-Wire

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available

2451804

Lead-Green

Note: Kohler Engine CV18S-PS 61521-Order parts from Kohler

$

$

Not available
