30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 089000001 - 089999999) (1998) EXHAUST Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

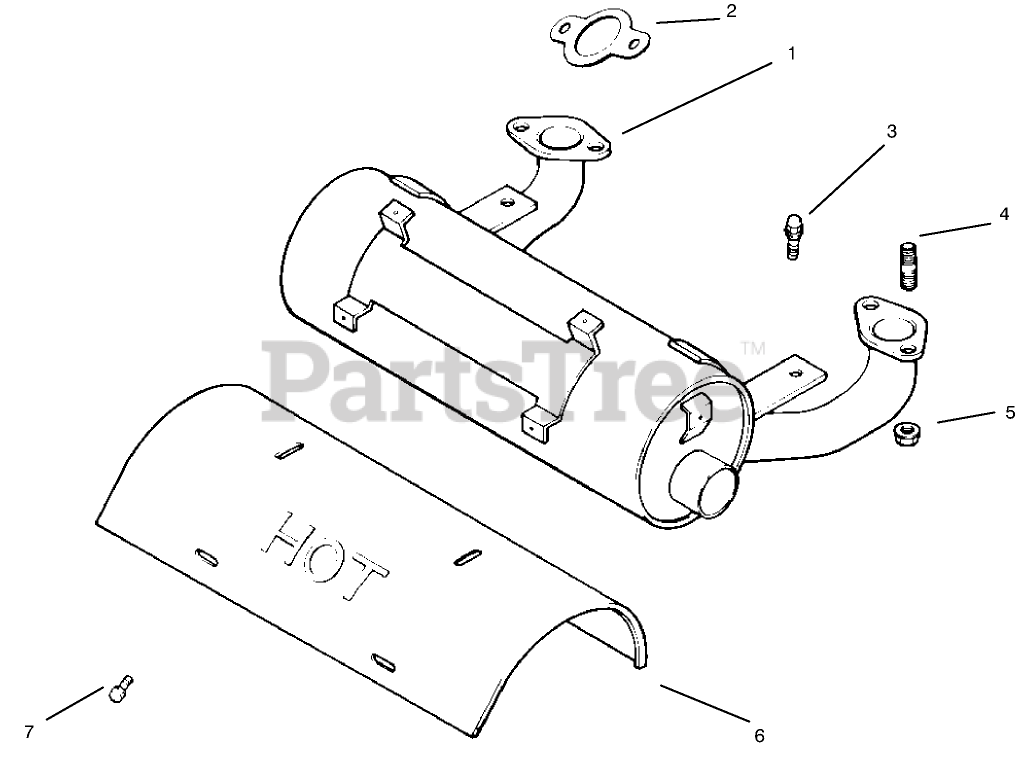

EXHAUST Parts Diagram

  • Title

1

2406808

Muffler

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available

2

Kohler 24 041 02

Gaskt-Exhaust
(Superseded to 24 041 02-S)

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available

3

Kohler SM-0645020

Screw
(Superseded to M-645020)

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$2.49

$

In Stock, only 1 left!

0

4

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$3.99

$

In Stock, only 3 left!

0

5

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$2.49

$

In Stock, only 1 left!

0

6

2428107

Duct-Heat Shield

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available

7

2508640

Screw

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available

2475503

Gasket Set

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available

2478205

Miniblock

Note: Kohler Engine CV18S-PS 61521 Order parts from Kohler

$

$

Not available
