30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 089000001 - 089999999) (1998) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

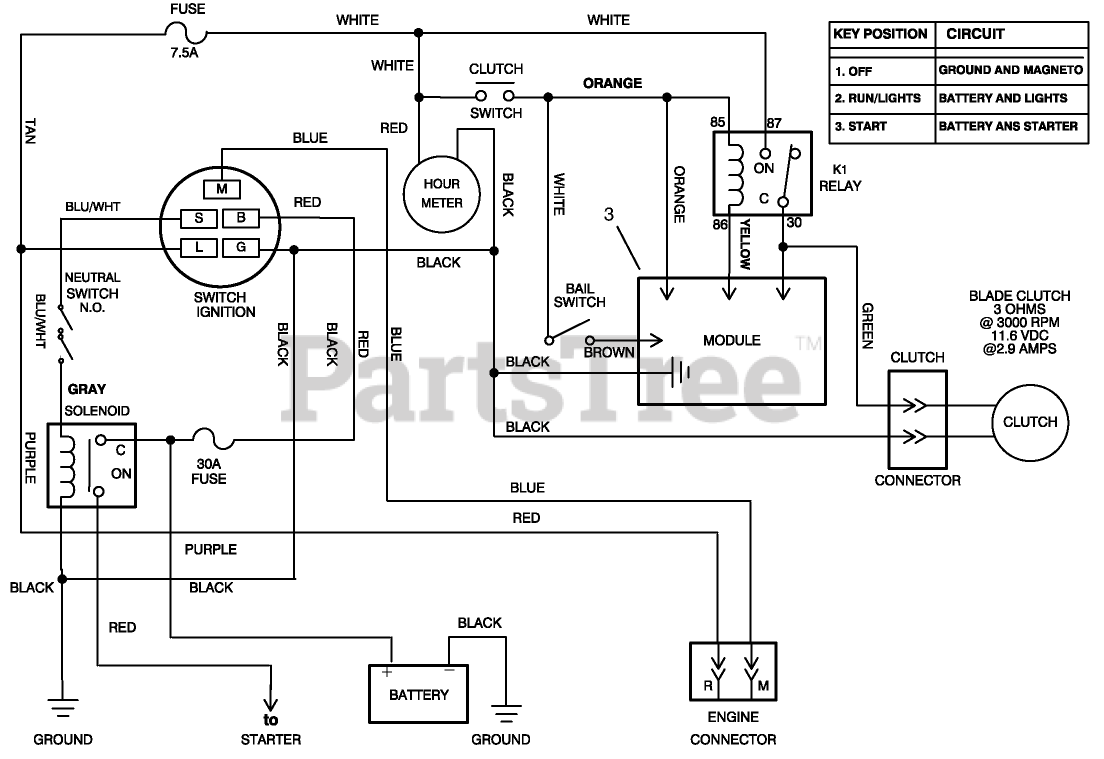

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 95-2805

WIRE HARNESS-18HP ELECT.

$373.99

$

Usually ships in 3-6 days

0

2

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

3

Toro 94-9666

MODULE
(Superseded to 107-4113)

$

$

Not available
