30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 079000001 - 079999999) (1997) ENGINE CONTROLS KOHLER ENGINE CV18S - PS61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

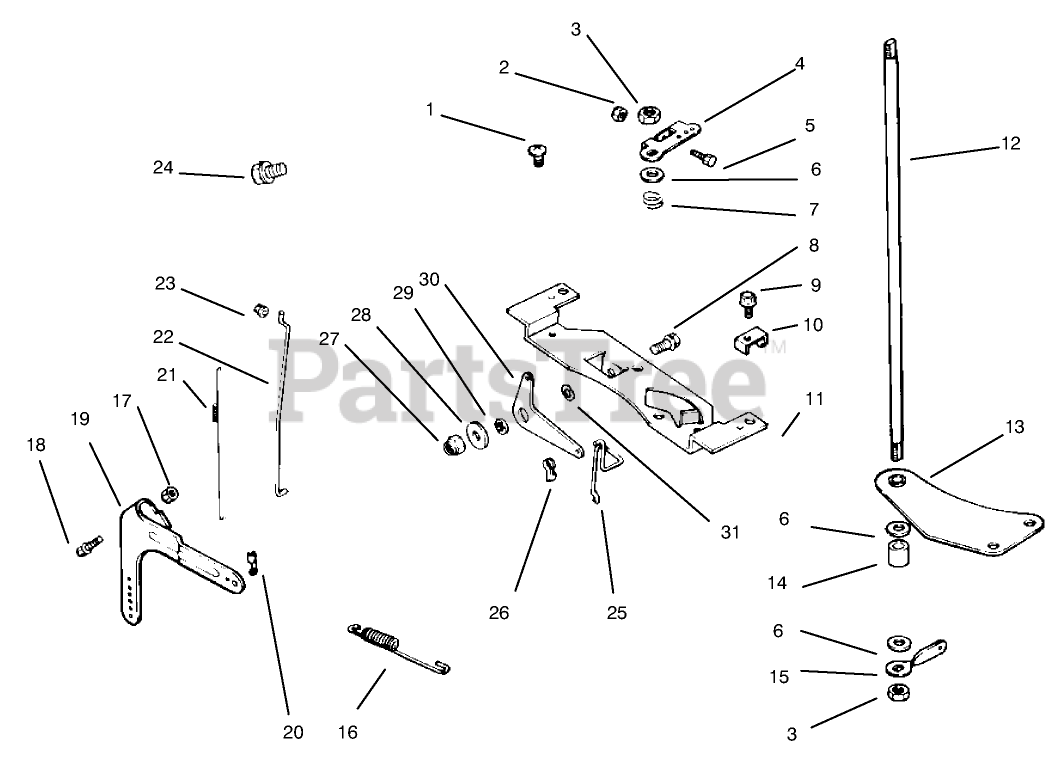

ENGINE CONTROLS KOHLER ENGINE CV18S - PS61521 Parts Diagram

  • Title

1

Kohler 24 086 06

Screw
(Superseded to 24 086 06-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

2

Kohler M-0446030

Nut
(Superseded to M-446030-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 4 left!

0

3

Kohler M-0647060

Nut
(Superseded to M-647060-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

4

2409009

Lever-Throttle Control

Note: Order Parts from Kohler

$

$

Not available

5

Kohler M-0401030

Screw
(Superseded to M-401030-S)

Note: Order Parts from Kohler

$3.49

$

In Stock, Qty 9

0

6

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 2 left!

0

7

2408920

Spring-Throttle Shaft

Note: Order Parts from Kohler

$

$

Not available

8

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 6

0

9

Kohler SM-0545016

Screw
(Superseded to SM-545016)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 15

0

10

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

Note: Order Parts from Kohler

$3.49

$

In Stock, Qty 5

0

11

2412647

Bracket-Control

Note: Order Parts from Kohler

$

$

Not available

12

2414411

Shaft-Throttle

Note: Order Parts from Kohler

$

$

Not available

13

2412617

Bracket-Throttle Shaft

Note: Order Parts from Kohler

$

$

Not available

14

5212213

Spacer

Note: Order Parts from Kohler

$

$

Not available

15

2409012

Lever-Throttle Control

Note: Order Parts from Kohler

$

$

Not available

16

2408918

Spring-Governor

Note: Order Parts from Kohler

$

$

Not available

17

Kohler SM-0641060

Nut

Note: Order Parts from Kohler

$

$

Not available

18

Kohler SM-0642025

Screw
(Superseded to SM-642025)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

19

2409014

Lever-Govenor

Note: Order Parts from Kohler

$

$

Not available

20

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Order Parts from Kohler

$5.99

$

In Stock, only 2 left!

0

21

Kohler 24 089 01

Spring-Linkage
(Superseded to 24 089 01-S)

Note: Order Parts from Kohler

$6.49

$

In Stock, Qty 9

0

22

2407904

Linkage-Throttle

Note: Order Parts from Kohler

$

$

Not available

23

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

Note: Order Parts from Kohler

$5.99

$

In Stock, Qty 18

0

24

Kohler SM-0645016

Screw
(Superseded to SM-645016)

Note: Order Parts from Kohler

$3.99

$

In Stock, Qty 13

0

25

2407908

Linkage-Choke

Note: Order Parts from Kohler

$

$

Not available

26

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Order Parts from Kohler

$5.99

$

In Stock, only 2 left!

0

27

Kohler M-0647060

Nut
(Superseded to M-647060-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

28

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 1 left!

0

29

2543101

Spacer

Note: Order Parts from Kohler

$

$

Not available

30

2409020

Lever-Choke

Note: Order Parts from Kohler

$

$

Not available

31

Kohler 277341

Washer
(Superseded to 277341-S)

Note: Order Parts from Kohler

$7.49

$

In Stock, only 1 left!

0
