30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 079000001 - 079999999) (1997) BATTERY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

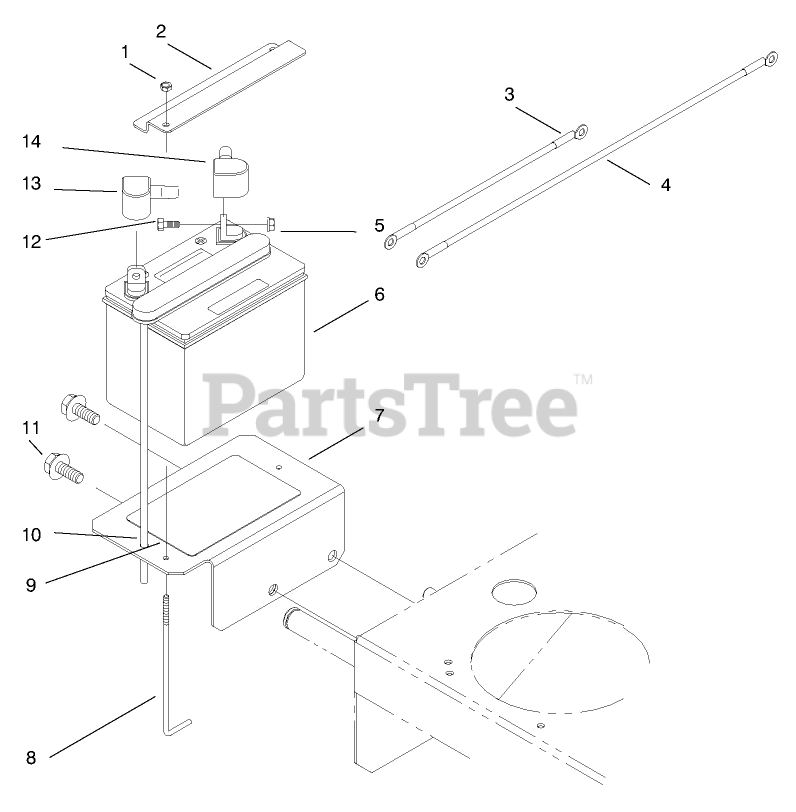

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

2

Toro 82-4620-01

STRAP - BATTERY

$

$

Not available

3

Toro 54-3092

WIRE ASM

$

$

Not available

4

Toro 54-3090

WIRE ASM

$

$

Not available

5

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

6

Toro 82-4640

Battery
(Superseded to 104-8162)

$

$

Not available

7

Toro 93-1180-01

WA - BATTERY PLATE

$151.99

$

Usually ships in 3-6 days

0

8

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

9

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

10

Toro 68-3810

TUBE-VENT

$

$

Not available

11

Toro 3234-32

SCREW-HHF

$10.99

$

In Stock, only 1 left!

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

14

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0
