30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 069005001 - 690005100) (1996) STARTER SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

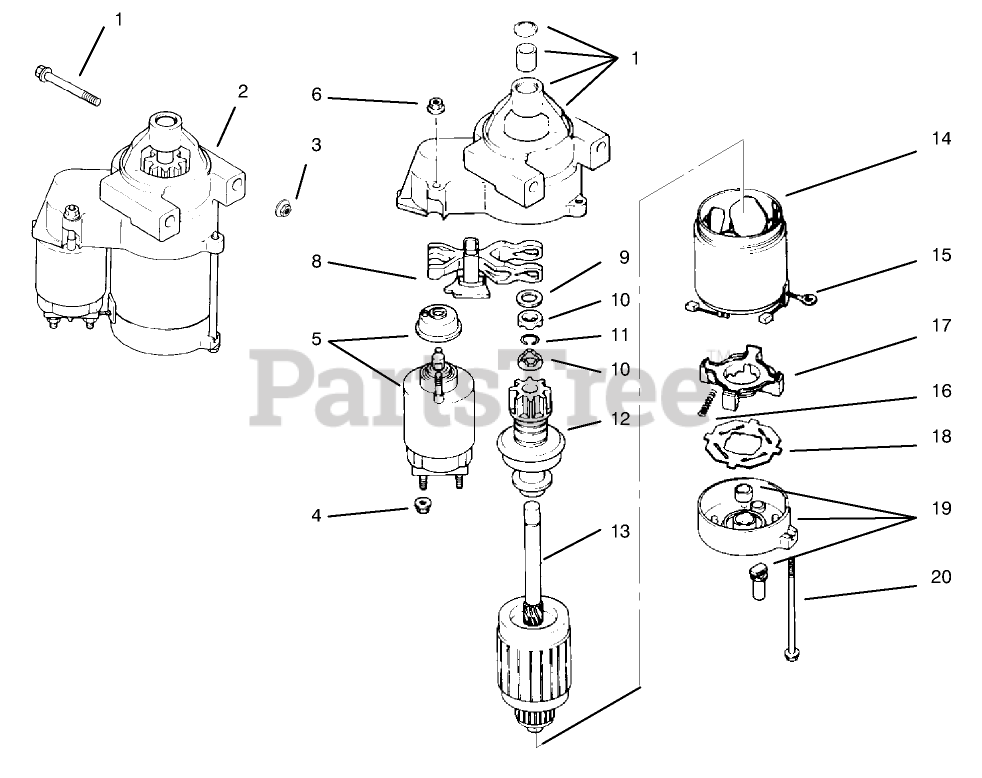

STARTER SYSTEM Parts Diagram

  • Title
1

Kohler M-0839080

Scew

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

1209803

Starter INC 4-20

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

4

5210010

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1208102

Cap Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

5210009

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

5243502

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1209010

Lever Starter Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

5246814

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

5210008

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

5214103

Ring-Retainer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1223901

Drive Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1217003

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

1247101

Frame

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

5222101

Brush Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

5208909

Spring Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

5232303

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

5216801

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

1230101

Cap-Commutator End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

5221105

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
