30183 - Toro ProLine Walk-Behind Mower, Gear Drive, 18hp (SN: 069005001 - 690005100) (1996) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 18hp

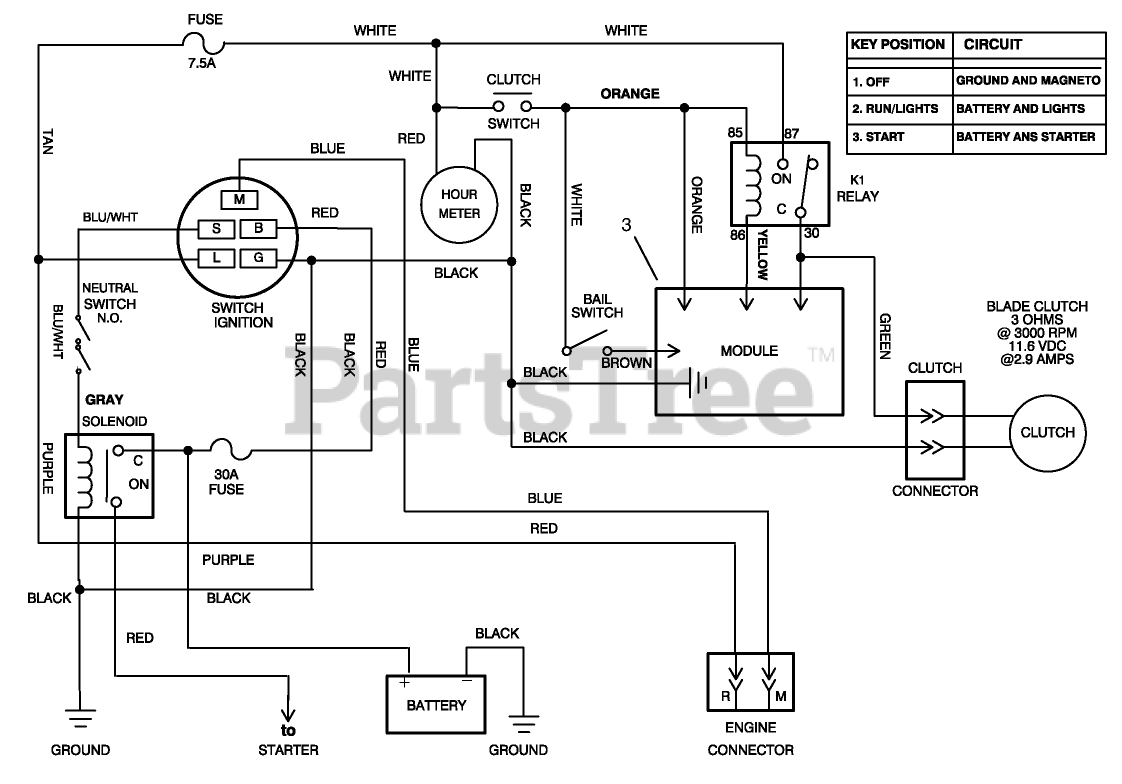

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 93-1158

WIRE HARNESS-18HP ELECT.

$

$

Not available

2

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available
