30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

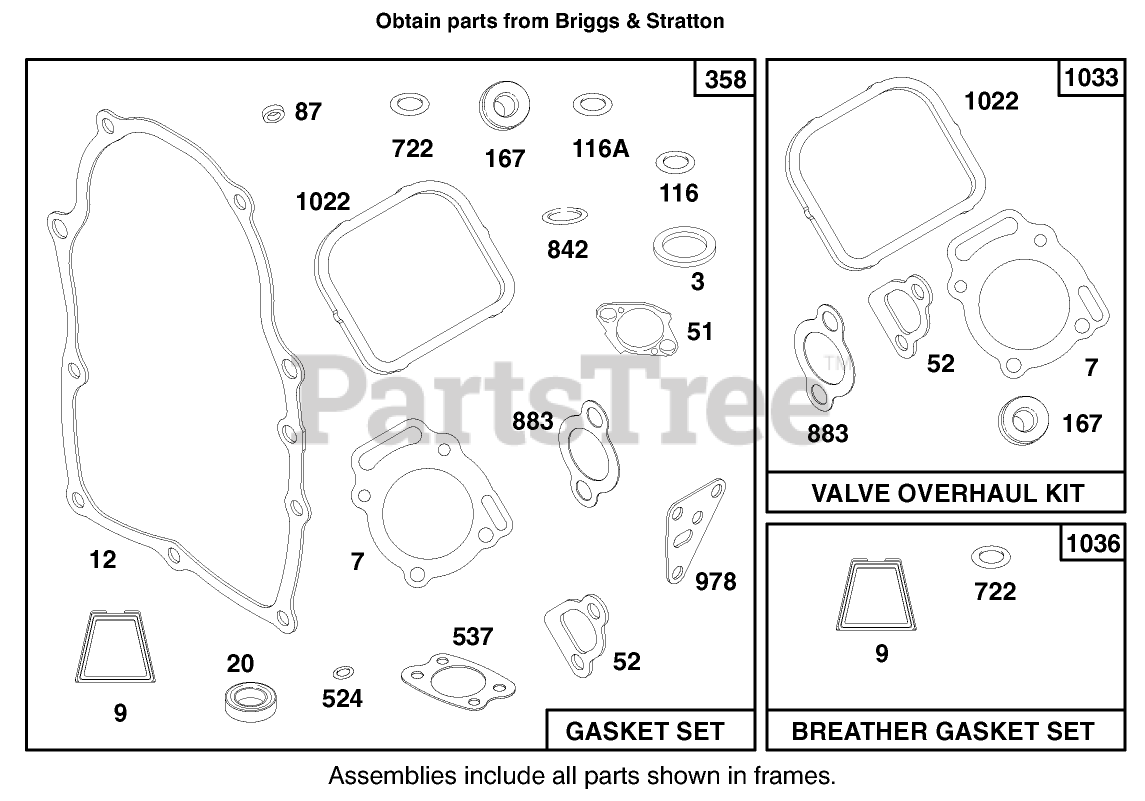

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

3

Briggs & Stratton 805101

Seal-Oil
(Superseded to 805101S)

Note: Included in Gasket Set-Part No. 807989.

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: Included in Valve Overhaul Kit-Part No. 807990.

$26.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 807989.

$26.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 805379

Gasket-Breather
(Superseded to 844986)

Note: Included in Gasket Set-Part No. 807989.

$8.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 805112

Gasket-Crankcase
(Superseded to 845254)

Note: Included in Gasket Set-Part No. 807989.

$45.99

$

In Stock, Qty 13

0

20

Briggs & Stratton 805049

Seal-Oil
(Superseded to 805049S)

Note: Included in Gasket Set-Part No. 807989.

$12.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 805700

Gasket-Intake
(Superseded to 691694)

Note: Included in Gasket Set-Part No. 807989.

$2.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 805023

Gasket-Intake
(Superseded to 692035)

Note: Included in Gasket Set-Part No. 807989.

$3.49

$

In Stock, Qty 15

0

52

Briggs & Stratton 805023

Gasket-Intake
(Superseded to 692035)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$3.49

$

In Stock, Qty 15

0

87

Briggs & Stratton 805054

Seal-Governor Shaft
(Superseded to 842826)

Note: Included in Gasket Set-Part No. 807989.

$7.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 805198

Seal-O-Ring

Note: Included in Gasket Set-Part No. 807989.

$4.99

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 805058

Seal-O Ring
(Superseded to 690681)

Note: Included in Gasket Set-Part No. 807989.

$5.99

$

In Stock, only 2 left!

0

167

Briggs & Stratton 805420

Washer
(Superseded to 691766)

Note: Included in Gasket Set-Part No. 807989.

$6.49

$

In Stock, Qty 20+

0

167

Briggs & Stratton 805420

Washer
(Superseded to 691766)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$6.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 807989

Gasket Set
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 805011

SeaI-FilITube
(Superseded to 692053)

Note: Included in Gasket Set-Part No. 807989.

$6.99

$

In Stock, Qty 9

0

537

Briggs & Stratton 805655

Gasket-Carburetor
(Superseded to 692081)

Note: Included in Gasket Set-Part No. 807989.

$5.49

$

In Stock, only 2 left!

0

722

Seal-O-Ring (Oil Pump)

Note: Included in Gasket Set-Part No. 807989.

$

$

Not available

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 807989.

$4.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 805024

Gasket-Exhaust
(Superseded to 691613)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 805024

Gasket-Exhaust
(Superseded to 691613)

Note: Included in Gasket Set-Part No. 807989.

$5.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 805250

Gasket-Adapter
(Superseded to 692063)

Note: Included in Gasket Set-Part No. 807989.

$4.49

$

In Stock, Qty 5

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Gasket Set-Part No. 807989.

$7.49

$

In Stock, Qty 20+

0

1033

Briggs & Stratton 807990

Kit-Valve Overhaul
(Superseded to 808392)

$83.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 807688

Gasket-Breather
(Superseded to 844986)

$8.49

$

In Stock, only 3 left!

0
