30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

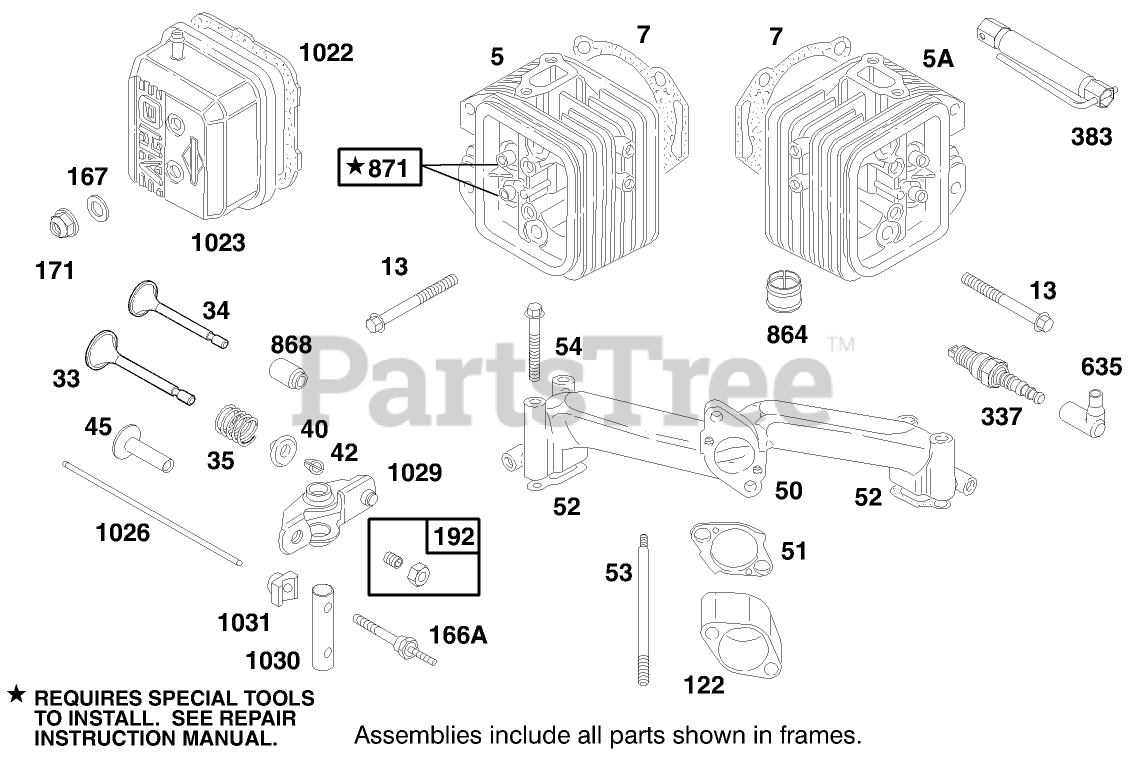

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

5

Briggs & Stratton 807987

Head-Cylinder #1
(Superseded to 809200)

$226.99

$

In Stock, only 4 left!

0

5A

Briggs & Stratton 807988

Head-Cylinder #2
(Superseded to 809201)

$220.99

$

In Stock, Qty 5

0

7

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 807989.

$26.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: Included in Valve Overhaul Kit-Part No. 807990.

$26.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 805097

Screw-HH
(Superseded to 692059)

$3.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 805089

Valve-Exhaust
(Superseded to 807681)

$43.99

$

In Stock, Qty 14

0

34

Briggs & Stratton 805090

Valve-Intake
(Superseded to 807680)

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 805937

Spring-Valve
(Superseded to 692084)

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 805092

Retainer-Valve
(Superseded to 692058)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 805161

Keeper-Valve
(Superseded to 844788)

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 805409

Manifold-Intake
(Superseded to 690754)

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 805700

Gasket-Intake
(Superseded to 691694)

Note: Included in Gasket Set-Part No. 807989.

$2.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 805023

Gasket-Intake
(Superseded to 692035)

Note: Included in Gasket Set-Part No. 807989.

$3.49

$

In Stock, Qty 17

0

53

Briggs & Stratton 805669

Stud-Standard
(Superseded to 690746)

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 805006

Screw
(Superseded to 690676)

$4.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 805770

Spacer-Carb.
(Superseded to 690753)

$14.99

$

Usually ships in 2-12 days

0

166A

Briggs & Stratton 805073

Stud-Hex. Drive
(Superseded to 690682)

$4.49

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 805420

Washer
(Superseded to 691766)

Note: Included in Gasket Set-Part No. 807989.

$6.49

$

In Stock, Qty 20+

0

167

Briggs & Stratton 805420

Washer
(Superseded to 691766)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$6.49

$

In Stock, Qty 20+

0

171

Briggs & Stratton 805019

Nut-Lock
(Superseded to 692055)

$3.99

$

In Stock, Qty 9

0

192

Briggs & Stratton 807623

Adjuster-Arm, Rocker

$11.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 805529

Boot-Spark Plug
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

864

Briggs & Stratton 805083

Liner-Port
(Superseded to 691493)

$12.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 805094

Seal-Valve
(Superseded to 691963)

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 805084

Guide-Valve
(Superseded to 692057)

$12.99

$

In Stock, only 2 left!

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Gasket Set-Part No. 807989.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Valve Overhaul Kit-Part No. 807990.

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 805100

Cover-Valve
(Superseded to 691494)

$17.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 805352

Rod-Push
(Superseded to 691836)

$12.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 808096

Arm-Rocker

$

$

Not available

1030

Briggs & Stratton 805342

Shaft-RockerArm
(Superseded to 690693)

$13.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 805341

Support-Rocker Arm

$

$

Not available
