30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

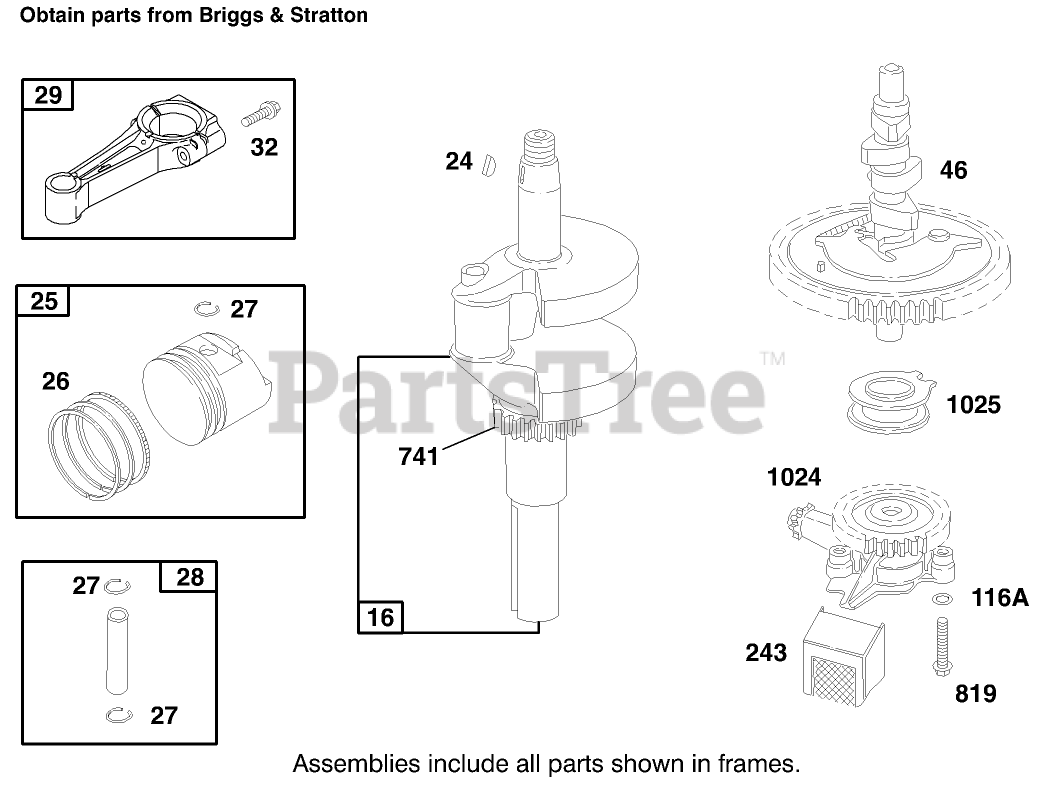

ENGINE BRIGGS & STRATTON MODEL 303776-1188-A1 Parts Diagram

  • Title

16

Briggs & Stratton 807586

Crankshaft Note: To Replace Crankshaft Timing Gear Key, Order Part No. 94196. For Thrust Washers, Order Part No. 807625.

$245.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 806066

Key-Flywheel
(Superseded to 808095)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807619

Piston ASM (Standard)
(Superseded to 843951)

$

$

Not available

Briggs & Stratton 807807

Piston ASM (.010 Oversize)

$96.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807809

Piston ASM (.020 Oversize)
(Superseded to 843958)

$

$

Not available

Briggs & Stratton 807811

Piston ASM (.030 Oversize)

$95.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807620

Ring Set (Standard)
(Superseded to 843951)

$

$

Not available

Briggs & Stratton 807808

Ring Set (.010 Oversize)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807810

Ring Set (.020 Oversize)
(Superseded to 843958)

$

$

Not available

Briggs & Stratton 807812

Ring Set (.030 Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 805099

Lock-Piston Pin
(Superseded to 690683)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

Pin-Piston

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807803

Rod-Connecting (.020 Undersize)

$65.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

Rod-Connecting (Standard)
(Superseded to 807900S)

$

$

Not available

32

Briggs & Stratton 805395

Screw-Hex.
(Superseded to 690698)

$7.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 807542

Gear-Cam
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 805058

Seal-O Ring
(Superseded to 690681)

Note: Included in Gasket Set-Part No. 807989.

$5.99

$

In Stock, only 2 left!

0

243

Briggs & Stratton 805964

Screen-Oil
(Superseded to 690878)

$16.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 805894

Gear-Timing
(Superseded to 690866)

$9.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 805057

Screw
(Superseded to 691492)

$3.99

$

In Stock, only 2 left!

0

1024

Briggs & Stratton 807546

Pump-Oil
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 805313

Slider-Govemor
(Superseded to 690689)

$22.99

$

In Stock, only 2 left!

0
