30182 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

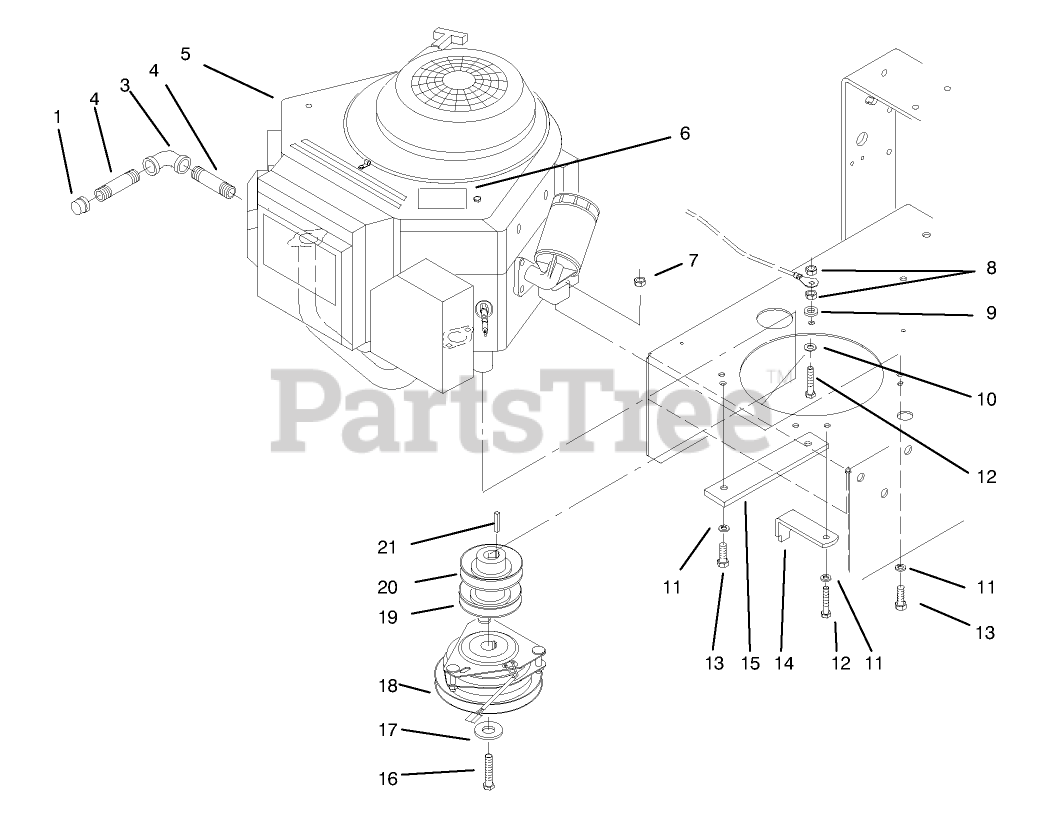

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

3

Toro 94-9650

ELBOW-90 DEG

$37.99

$

Usually ships in 3-6 days

0

4

Toro 289-46

NIPPLE-PIPE

$

$

Not available

5

Engine-Briggs & Stratton (Model No.303776 Type 1188 Trim A1)

$

$

Not available

6

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

9

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

13

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

14

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 3 left!

0

15

Toro 94-5847

Guard-Engine
(Superseded to 94-5847-01)

$

$

Not available

16

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

17

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

18

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

19

Toro 74-0050

SHEAVE-LOWER HALF

$21.99

$

Usually ships in 3-6 days

0

20

Toro 74-0060

SHEAVE-UPPER HALF

$21.99

$

Usually ships in 3-6 days

0

21

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0
