30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) STARTING SYSTEM Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

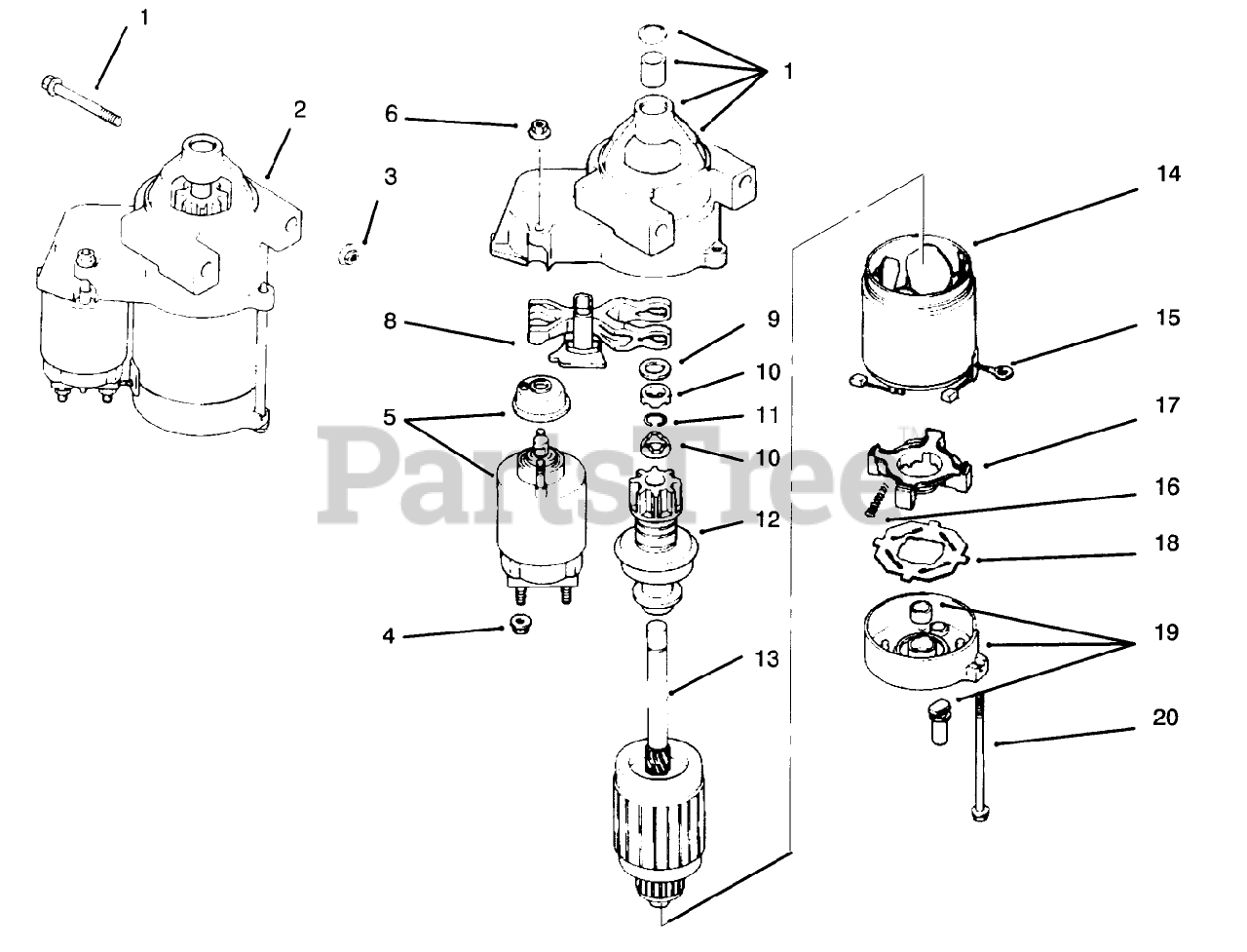

STARTING SYSTEM Parts Diagram

  • Title

1

Kohler M-0839080

Scew

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

2

1209803

Starter Solenoid Shift (Incl. Ref. #4-20)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Kohler Engine CV18S-PS 61521

$2.49

$

In Stock, only 1 left!

0

4

5210010

Nut

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

5

1208102

Cap Drive End

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

6

5210009

Nut

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

7

5243502

Solenoid

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

8

1209010

Lever Starter Drive

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

9

5246814

Washer

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

10

5210008

Nut

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

11

5214103

Ring-Retainer

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

12

1223901

Drive Pinion

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

13

1217003

Armature

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

14

1247101

Frame

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

15

5222101

Kit-Brush (Incl. Ref. #16)

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

16

5208909

Spring Brush

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

17

5232303

Holder-Brush

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

18

5216801

Insulator

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

19

1230101

Cap-Commutator End

Note: Kohler Engine CV18S-PS 61521

$

$

Not available

20

5221105

Bolt

Note: Kohler Engine CV18S-PS 61521

$

$

Not available
