30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

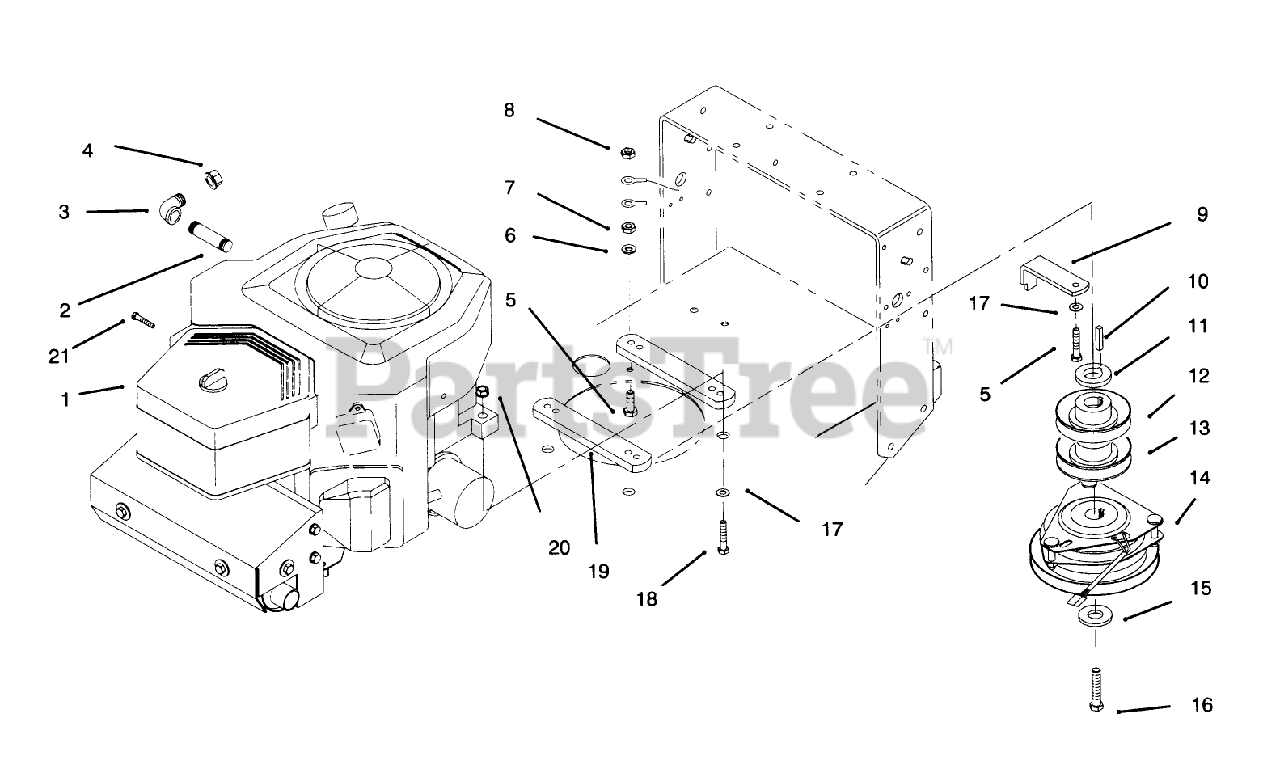

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1168

ENGINE - 18 HP KOHLER

$

$

Not available

2

Toro 289-42

NIPPLE

$17.99

$

Usually ships in 3-6 days

0

3

Toro 2811-10

ELBOW-STREET, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

4

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

5

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

6

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

7

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

8

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

9

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$19.99

$

Usually ships in 3-6 days

0

10

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

11

Toro 93-1177

SPACER - PULLEY
(Superseded to 104-8556)

$

$

Not available

12

Toro 74-0060

SHEAVE-UPPER HALF

$18.99

$

Usually ships in 3-6 days

0

13

Toro 74-0050

SHEAVE-LOWER HALF

$18.99

$

Usually ships in 3-6 days

0

14

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

15

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

16

Toro 3212-24

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

19

Toro 93-1176

SPACER - ENGINE

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0
