30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) HEAD/VALVE/BREATHER KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

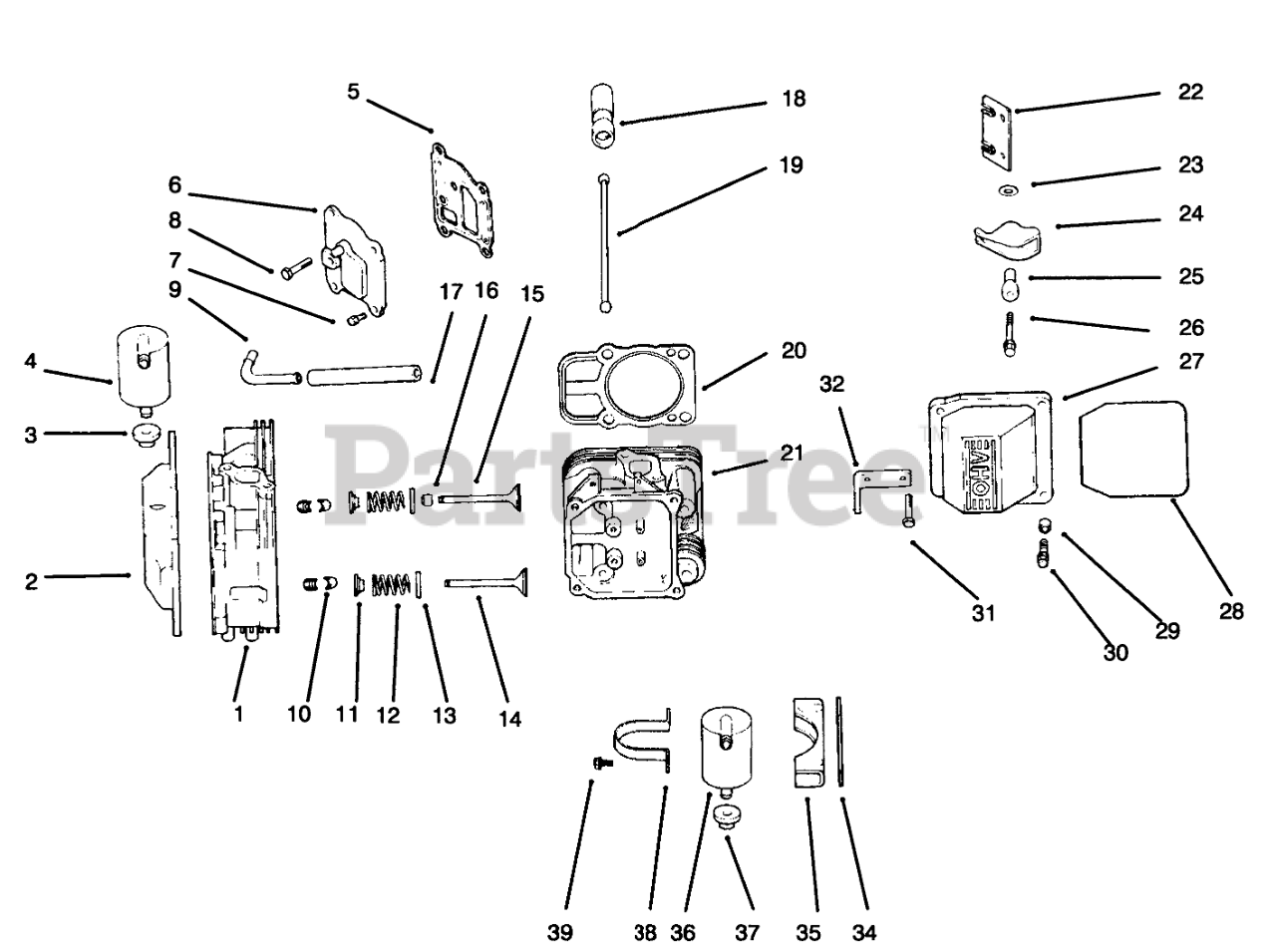

HEAD/VALVE/BREATHER KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2431811

#1 Cyl. Head Asm

$

$

Not available

2

2475576

Kit-Valve Cover/Breather (Incl. Ref.# 3 & 28-30)

$

$

Not available

3

2531302

Grommet-Rubber

$

$

Not available

4

2475520

Kit-Breather (Incl. Ref.# 3)

$

$

Not available

5

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

$13.99

$

In Stock, Qty 9

0

6

2409615

Cover-Breather

$

$

Not available

7

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

8

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

9

2429401

Fitting

$

$

Not available

10

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, only 2 left!

0

11

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

12

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

$7.99

$

In Stock, only 2 left!

0

13

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

14

Kohler 24 016 01

Valve-Exhaust (Std)
(Superseded to 24 016 01-S)

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

Note: Not illustrated

$15.99

$

In Stock, only 3 left!

0

15

Kohler 24 017 01

Valve-Intake (Std)
(Superseded to 24 017 01-S)

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Not illustrated

$

$

Not available

16

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 8

0

17

2432603

Hose

$

$

Not available

18

1235101

Lifter-Valve

$

$

Not available

19

2441104

Rod-Push

$

$

Not available

20

2404108

Gasket-Cylinder Head

$

$

Not available

21

2431812

#2 Cyl. Head Asm,

$

$

Not available

22

2414609

Plate-Guide

$

$

Not available

23

Kohler SM-0631005

Washer

$

$

Not available

24

2418602

Arm-Rocker

$

$

Not available

25

2419402

Pivot-Rocker Arm

$

$

Not available

26

Kohler M-0640034

Screw

$

$

Not available

27

Kohler 24 755 74

Kit-Valve Cover (Incl. Ref. # 28-30)
(Superseded to 24 755 74-S)

$35.99

$

In Stock, only 2 left!

0

28

2415311

"O"Ring

$

$

Not available

29

Kohler 24 112 08

Spacer
(Superseded to 24 112 08-S)

$4.49

$

Usually ships in 2-5 days

0

30

Kohler M-0651030

Screw
(Superseded to M-651030-S)

$

$

Not available

31

1208616

Screw

$

$

Not available

32

2444501

Strap-Lifting

$

$

Not available

33

2475557

Kit-Breather Separator (Incl. Ref. # 34-39)

Note: Not illustrated

$

$

Not available

34

2411212

Spacer

$

$

Not available

35

2412644

Bracket

$

$

Not available

36

2459502

Separator-Oil Breather

$

$

Not available

37

2431302

Grommet

$

$

Not available

38

2444502

Strap-Lifting

$

$

Not available

39

Kohler M-0549016

Screw

$

$

Not available
