30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

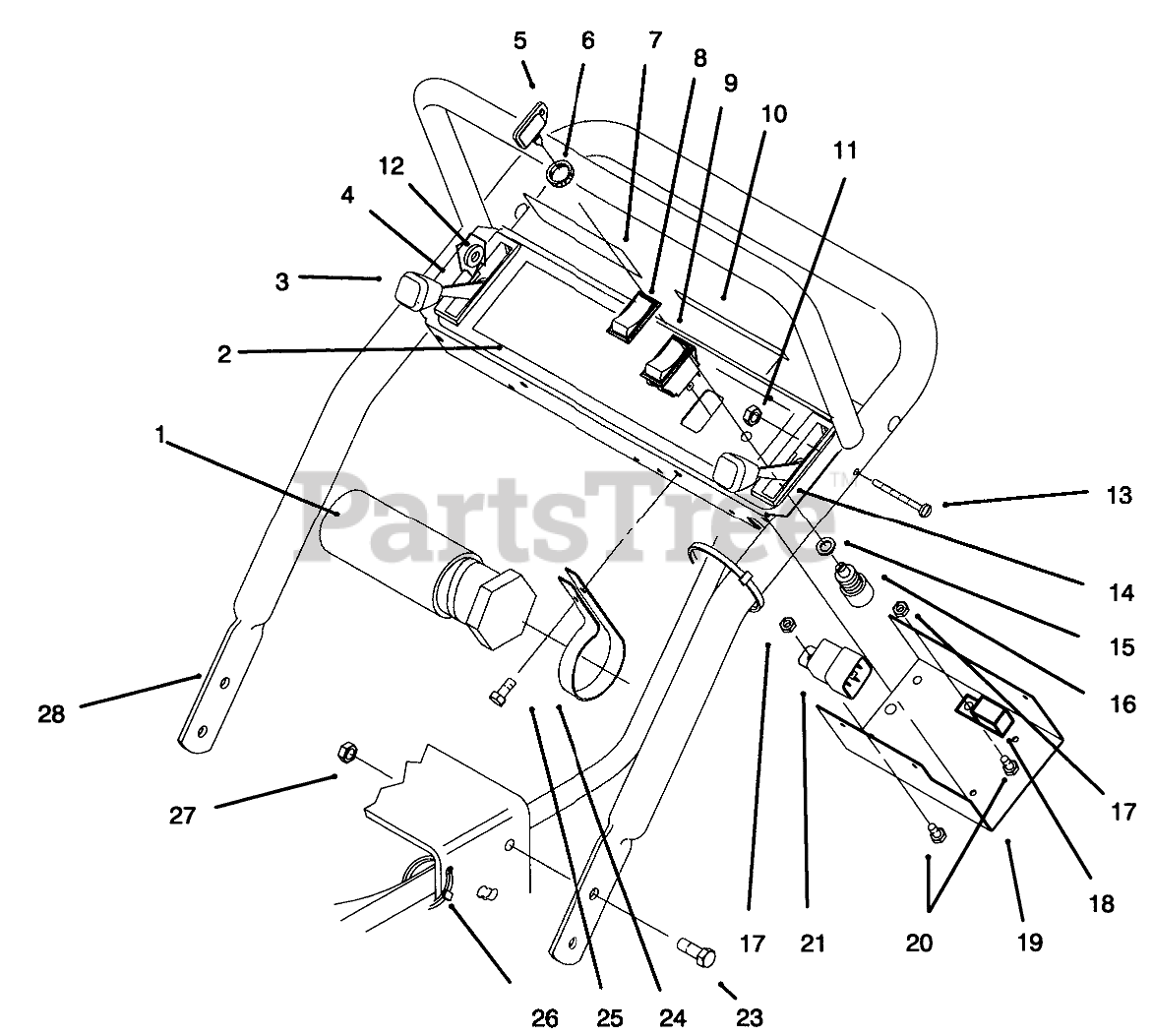

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 32-7740

Decal-Proline

$

$

Currently unavailable

3

Toro 33-1191

Control-Choke

$

$

Currently unavailable

4

Toro 32-2180

Panel-Control

$

$

Currently unavailable

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

6

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

7

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

8

Toro 82-3820

BOOT-SWITCH

$

$

Not available

9

Toro 82-2300

Switch-Clutch (Incl. Ref.#8)
(Superseded to 121-8032)

$55.99

$

In Stock, only 3 left!

0

10

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 54-2970

SPACER

$27.99

$

Usually ships in 3-6 days

0

13

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

14

Toro 93-1190

CONTROL - THROTTLE

$139.99

$

Usually ships in 3-6 days

0

15

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

16

Toro 23-0660

Switch-Ignition (Incl. Ref. #5,6, &15)

$23.99

$

In Stock, only 1 left!

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

18

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available

19

Toro 93-1187

Panel-Bottom
(Superseded to 93-1187-03)

$49.99

$

Usually ships in 3-6 days

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

23

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

24

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

25

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available
