30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) CRANKCASE KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

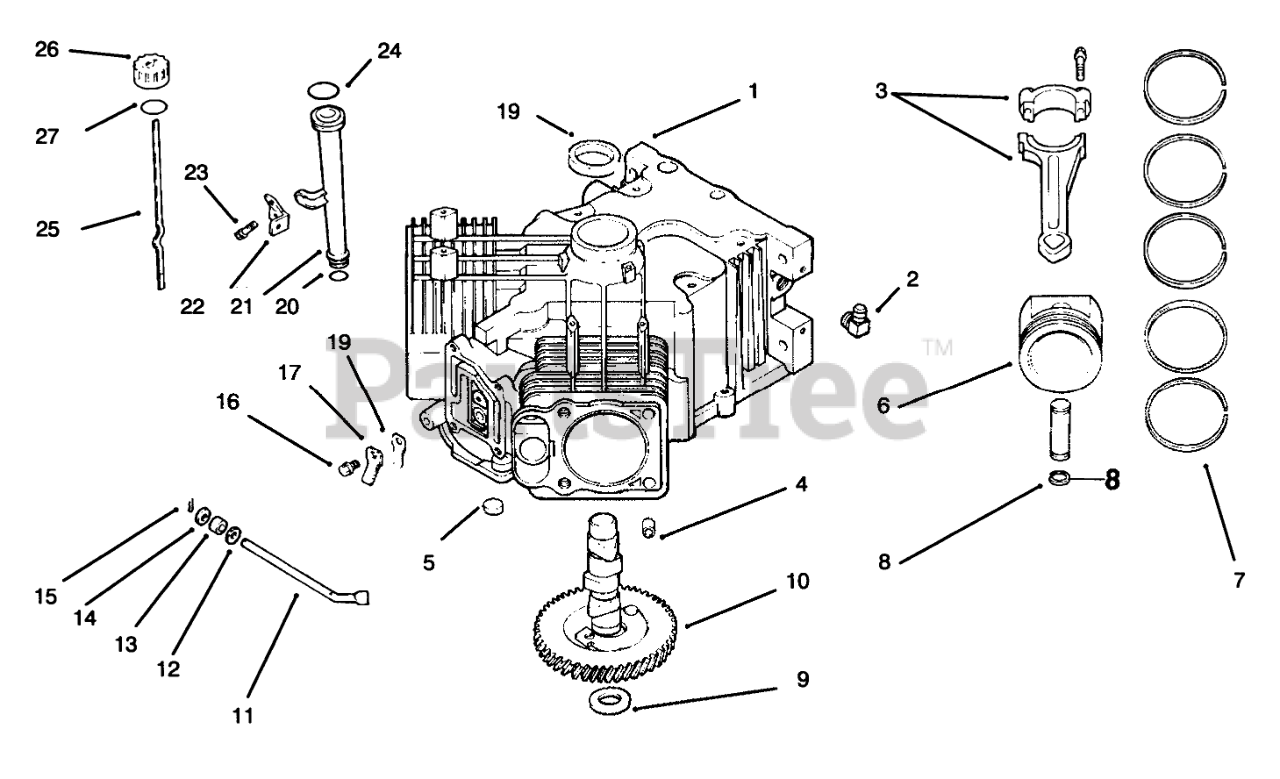

CRANKCASE KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2478205

Miniblock

$

$

Not available

2

2429403

Fitting

$

$

Not available

3

2406701

Rod-Connecting (Std.)

$

$

Not available

9406702

Rod-Connecting (.25)

Note: Not illustrated

$

$

Not available

4

1238003

Pin-Dowel

$

$

Not available

5

52 139 09

Plug

$

$

Not available

6

2487401

Set-Piston w/Ring (Incl. Ref. #7-8)

$

$

Not available

2487402

Set-Piston w/Ring (.25) (Incl. Ref. #7-8)

Note: Not illustrated

$

$

Not available

2487403

Set-Piston w/Ring (.50) (Incl. Ref. #7-8)

Note: Not illustrated

$

$

Not available

7

2410801

Set-Ring (Std)

$

$

Not available

2410802

Set-Ring (.25)

Note: Not illustrated

$

$

Not available

2410803

Set-Ring (.50)

Note: Not illustrated

$

$

Not available

8

24 018 01

Retainer-Piston Pin

$

$

Not available

9

12 422 09

Shim-Camshaft (Green)

$

$

Not available

12 422 13

Shim-Camshaft (Black)

Note: Not illustrated

$

$

Not available

12 422 07

Shim-Camshaft (White)

Note: Not illustrated

$

$

Not available

12 422 08

Shim-Camshaft (Blue)

Note: Not illustrated

$

$

Not available

12 422 10

Shim-Camshaft (Yellow)

Note: Not illustrated

$

$

Not available

12 422 11

Shim-Camshaft (Red)

Note: Not illustrated

$

$

Not available

12 422 12

Shim-Camshaft (Gray)

Note: Not illustrated

$

$

Not available

10

2401205

Camshaft

$

$

Not available

11

2414401

Shaft-Governor Cross

$

$

Not available

12

Toro X-25-63

Washer

$

$

Currently unavailable

13

1203201

Seal-Cross Shaft

$

$

Not available

14

Toro X-25-102

Washer

$

$

Currently unavailable

15

1238004

Pin-Hitch

$

$

Not available

16

Toro M-0545010

Screw

$

$

Currently unavailable

17

2401804

Retainer-Reed

$

$

Not available

18

2440201

Beed-Breather

$

$

Not available

19

24 032 01

Seal-Oil

$

$

Not available

20

1215301

"O"Ring

$

$

Not available

21

1212304

Tube-Oil Fill

$

$

Not available

22

2412619

Bracket-Oil Tube

$

$

Not available

23

Toro M-0549016

Screw

$

$

Currently unavailable

24

1215302

"O"Ring

$

$

Not available

25

2403804

Dipstick Assembly (Incl. Ref. # 26-27)

$

$

Not available

26

2575513

Kit-Fill Cap (Incl. Ref. # 27)

$

$

Not available

27

1215303

"O"Ring

$

$

Not available
