30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) CARBURETOR/FUEL PUMP KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

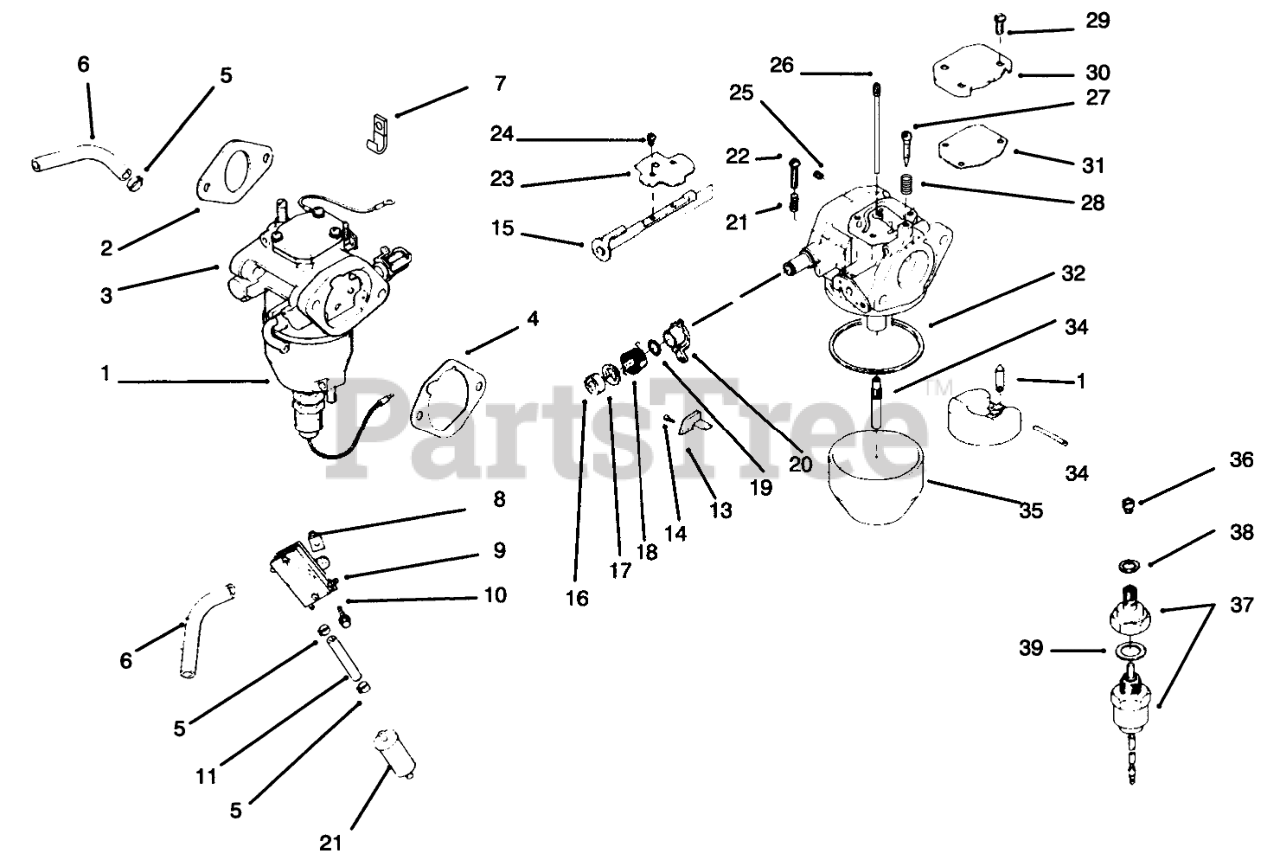

CARBURETOR/FUEL PUMP KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2485322

Kit-Carburetor (Incl. Ref.#2-4)

$

$

Not available

2

2404115

Kit-Carburetor

$

$

Not available

3

2405317

Carburetor (Ref. Only) (Inc. Ref.15-39)

$

$

Not available

4

2404114

Gasket-A/C Base

$

$

Not available

5

Kohler X-426-9

Clamp-Hose
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

6

5235322

Line-Fuel 12"

$

$

Not available

7

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

$5.49

$

In Stock, Qty 5

0

8

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

9

2439304

Pump-Fuel

$

$

Not available

10

2408612

Screw

$

$

Not available

11

2435303

Line-Fuel

$

$

Not available

12

2505003

Filter-Fuel

$

$

Not available

13

Kohler 2412629

Bracket-Throttle Stop

$

$

Not available

14

Kohler M-0259006

Screw

$0.99

$

Usually ships in 2-5 days

0

15

2414415

Shaft-Choke

$

$

Not available

16

2446805

Washer

$

$

Not available

17

2424101

Collar-Coke

$

$

Not available

18

2408922

Spring-Choke Return

$

$

Not available

19

2414104

Ring-Choke Lever

$

$

Not available

20

2409010

Lever-Choke

$

$

Not available

21

2408924

Sprin-Throttle Screw

$

$

Not available

22

2408619

Screw-Throttle Adjust

$

$

Not available

23

2446202

Valve-Choke

$

$

Not available

24

2408620

Screw

$

$

Not available

25

2433727

Jet-Air Bleed

$

$

Not available

26

2433711

Jet-Slow

$

$

Not available

27

2408622

Screw

$

$

Not available

28

2408923

Spring-idler Screw

$

$

Not available

29

2408621

Screw

$

$

Not available

30

2409613

Cover-Passage

$

$

Not available

31

2404118

Gasket-Passage Cover

$

$

Not available

32

2404119

Gasket-Float Chamber

$

$

Not available

33

2475705

Kit-Float Repair

$

$

Not available

34

2436901

Nozzle-Main

$

$

Not available

35

2423401

Chamber-Float

$

$

Not available

36

2433720

Jet-Main

$

$

Not available

37

2475515

Kit-Solenoid Valve (Incl. Ref. #38-39)

$

$

Not available

38

2404121

Gasket-Chamber Screw

$

$

Not available

39

2404120

Gasket-Solenoid

$

$

Not available

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

2404115

Kit-Carburetor

Note: Not illustrated

$

$

Not available

2475525

Kit-High Altitude (1500-3000 Meters)

Note: Not illustrated

$

$

Not available

2475526

Kit-High Altitude (over 3000 Meters)

Note: Not illustrated

$

$

Not available

2475706

Kit-Carburetor Repair

$

$

Not available
