30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) BLOWER HOUSING & BAFFLES KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

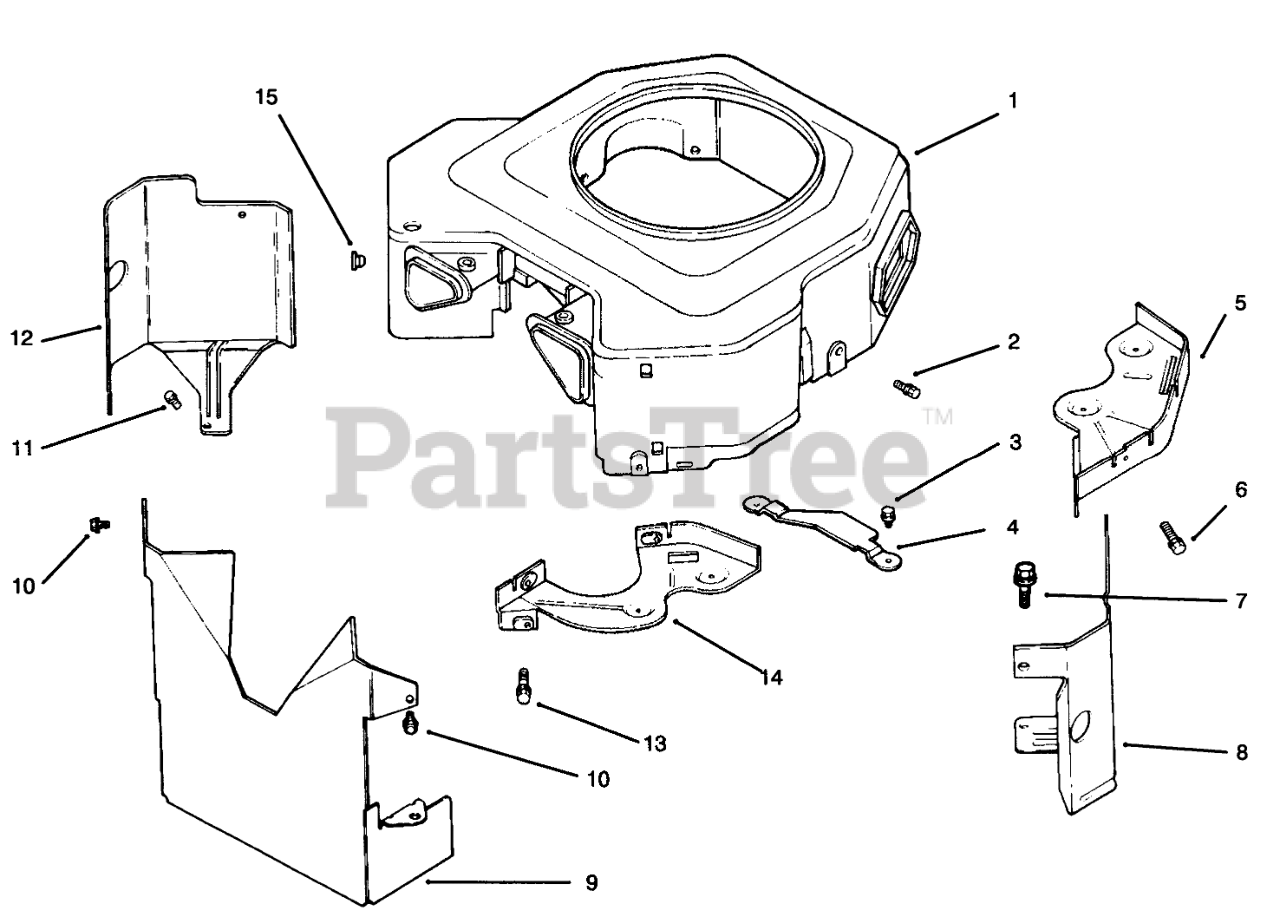

BLOWER HOUSING & BAFFLES KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2402721

Housing-Blower

$

$

Not available

2

Kohler M-0549016

Screw

$

$

Not available

3

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 13

0

4

Toro 2431405

Guard-Flywheel

$

$

Currently unavailable

5

2414602

Plate-Backing #2 Side

$

$

Not available

6

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

7

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

9

2406316

Baffle-Valley

$

$

Not available

10

Kohler M-0549010

Screw
(Superseded to M-545010-S)

$4.49

$

In Stock, only 1 left!

0

11

Kohler M-0549016

Screw

$

$

Not available

12

2406319

Baffle-Cylinder #1 Side

$

$

Not available

13

Kohler M-0649016

Screw
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

14

2414608

Plate-Backing #1

$

$

Not available

15

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

$2.49

$

Usually ships in 2-5 days

0

Kohler 24 100 01

Nut-Plastic (Incl. w/Blower Housing)
(Superseded to 25 100 37-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 7

0

Kohler 24 100 02

Nut-Plastic (Incl. w/Blower Housing)
(Superseded to 24 100 02-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Toro 24 086 43

Screw-Set (Incl. w/Blower Housing)

Note: Not illustrated

$

$

Currently unavailable

Kohler 25 139 16

Plug-Button (Incl. w/Blower Housing)
(Superseded to 25 139 16-S)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0

2411311

Decal-HP

Note: Not illustrated

$

$

Not available
