30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) AIR CLEANER/FILTRATION KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

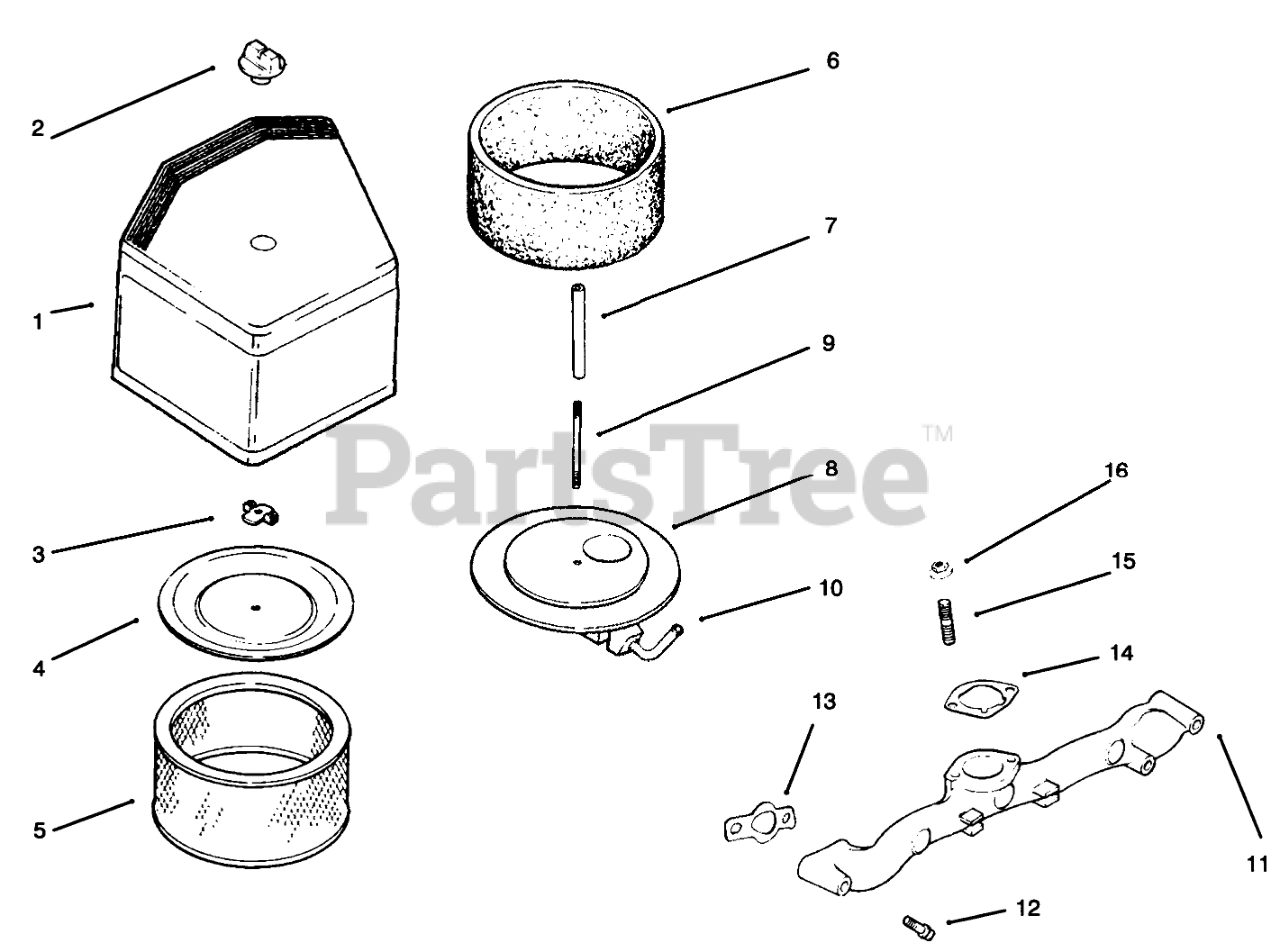

AIR CLEANER/FILTRATION KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2474310

Kit-Air Cleaner Cover (Incl. Ref.# 2)

$

$

Not available

2

2534102

Knob-Cover

$

$

Not available

3

1210001

Nut-Wing

$

$

Not available

4

5208204

Cover-Element

$

$

Not available

5

4508301

Precleaner

$

$

Not available

6

4508302

Element

$

$

Not available

7

2403204

Seal

$

$

Not available

8

2405402

Elbow-Air Cleaner (Incl. Ref. # 9-10)

$

$

Not available

9

2407204

Stud

$

$

Not available

10

2429401

Fitting

$

$

Not available

11

2416406

Manifold-Intake

$

$

Not available

12

Kohler M-0639055

Screw
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0

13

2404101

Gasket-intake Manifold

$

$

Not available

14

2404114

Gasket-A/C Base

$

$

Not available

15

Kohler M-0629128

Stud
(Superseded to M-629128-S)

$13.99

$

Usually ships in 2-5 days

0

16

Kohler SM-0641060

Nut

$

$

Not available

2411314

Decal-Maintenance

Note: Not illustrated

$

$

Not available
