30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) INTAKE MANIFOLD AND CARBURATOR Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

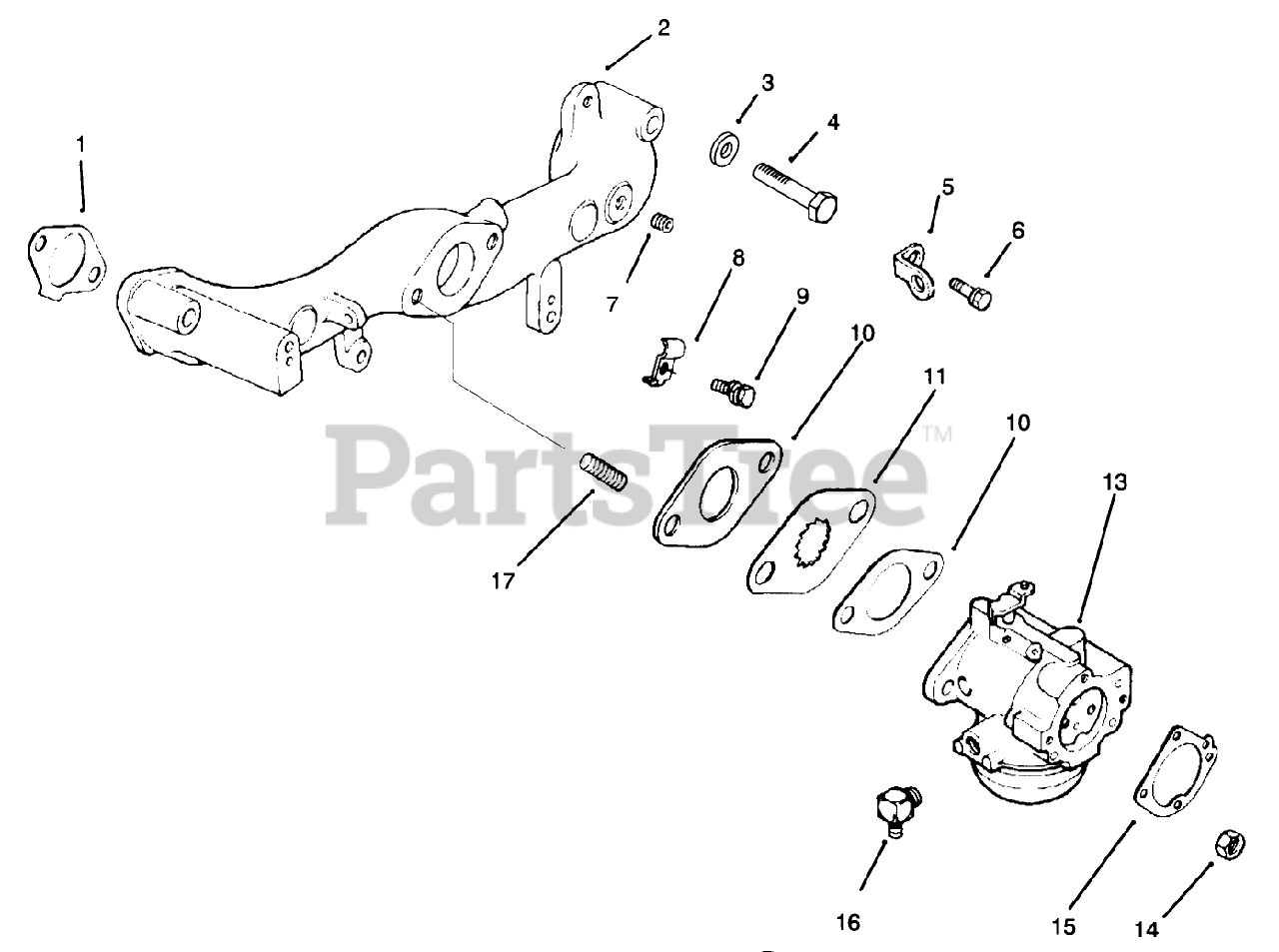

INTAKE MANIFOLD AND CARBURATOR Parts Diagram

  • Title
1

5204109

Gasket-Intake Manifold

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

5275591

Kit-Manifold (Incl. Ref. #3, 4, 7, & 17)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

Toro X-21-44

Washer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Currently unavailable

4

Kohler X-6-29

Screw
(Superseded to X-6-29-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

In Stock, only 4 left!

0

5

Kohler 232867

Strap Lifting
(Superseded to 28 445 01-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0

7

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

In Stock, only 2 left!

0

8

Toro 234778

Clamp-Cable

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Currently unavailable

9

Toro x-67-97

Screw

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Currently unavailable

10

Kohler 271030

Gasket
(Superseded to 271030-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$7.49

$

Usually ships in 2-5 days

0

11

5206340

Baffle

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

5285309

Carburetor Kit w/Gaskets

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5205334

Carburetor Assembly For Information Only

Note: Not illustrated

$

$

Not available

5205334

Carburetor Assembly For Information Only

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

14

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0

15

2504106

Gasket-Elbow

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

16

25515502

Connector-Hose

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

17

4107219

Stud

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
