30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) IGNITION Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

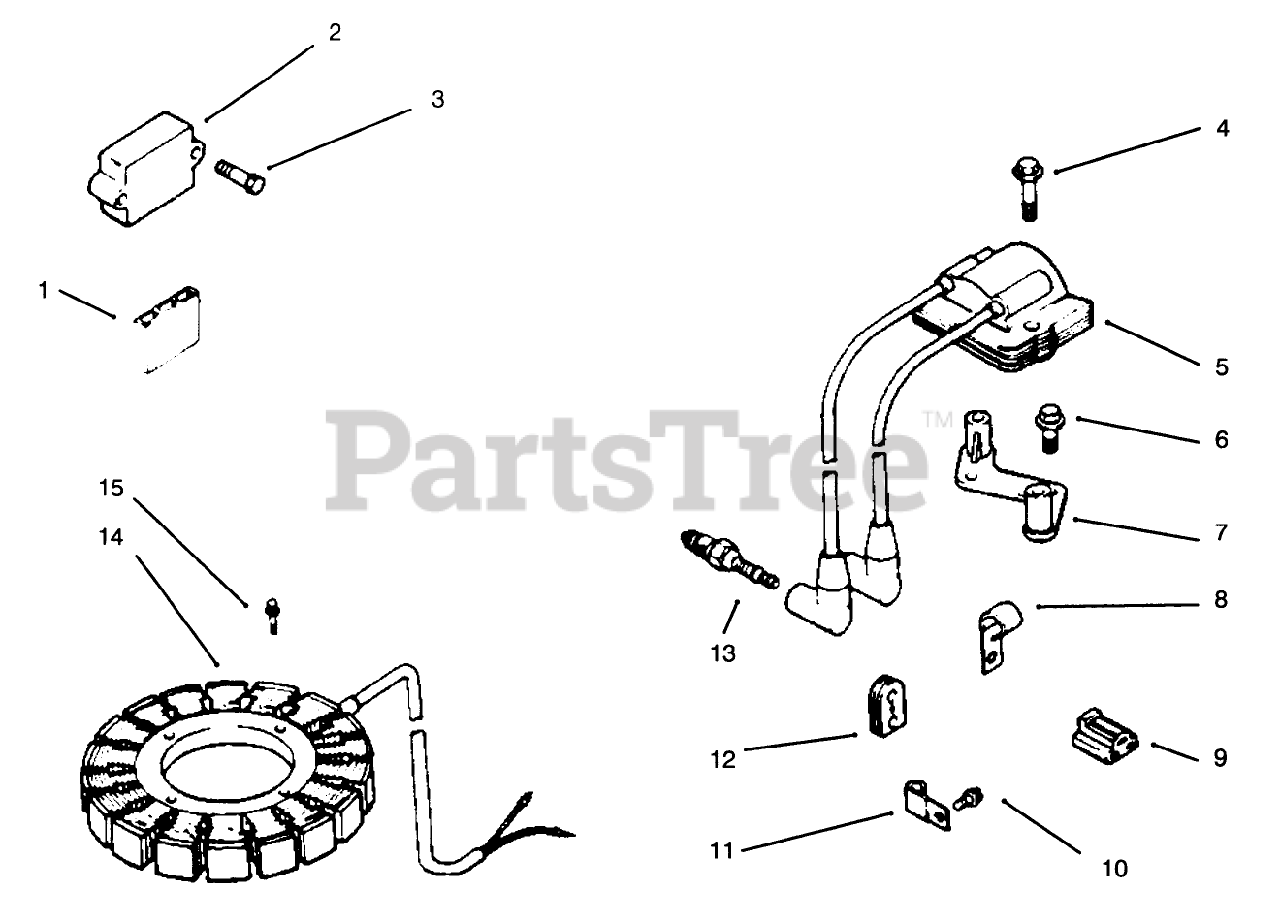

IGNITION Parts Diagram

  • Title

1

Kohler 236602

Connector
(Superseded to 236602-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$24.99

$

In Stock, only 1 left!

0

2

Kohler 25 755 03

Kit-Rectifier/Regulator (Incl. Ref. #3)
(Superseded to 25 755 03-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$125.99

$

In Stock, only 1 left!

0

3

Kohler X-132-5

Screw
(Superseded to X-132-5-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

In Stock, only 1 left!

0

4

2508616

Screw-Hex. Washer Hd.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

5258402

Module-Ignition

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

2508615

Screw-Hex. Washer Hd.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

5212608

Bracket-Module

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

Kohler 235173

Clip
(Superseded to 235173-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$11.99

$

Usually ships in 2-5 days

0

9

Kohler 236473

Connector
(Superseded to 236473-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$7.49

$

Usually ships in 2-5 days

0

10

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.49

$

In Stock, only 1 left!

0

11

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$16.99

$

Usually ships in 2-5 days

0

12

5231302

Grommet

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

5213202

Spark Plug

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

14

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 237878

Kit-Stator (Incl. Ref. #15)
(Superseded to 237878-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$149.99

$

In Stock, Qty 15

0

4751833

Lead-Violet

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4751833

Lead-Violet

Note: Not illustrated

$

$

Not available

5251819

Lead-White

Note: Not illustrated

$

$

Not available

5251819

Lead-White

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
