30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) FUEL PUMP, LINE AND FILTER Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

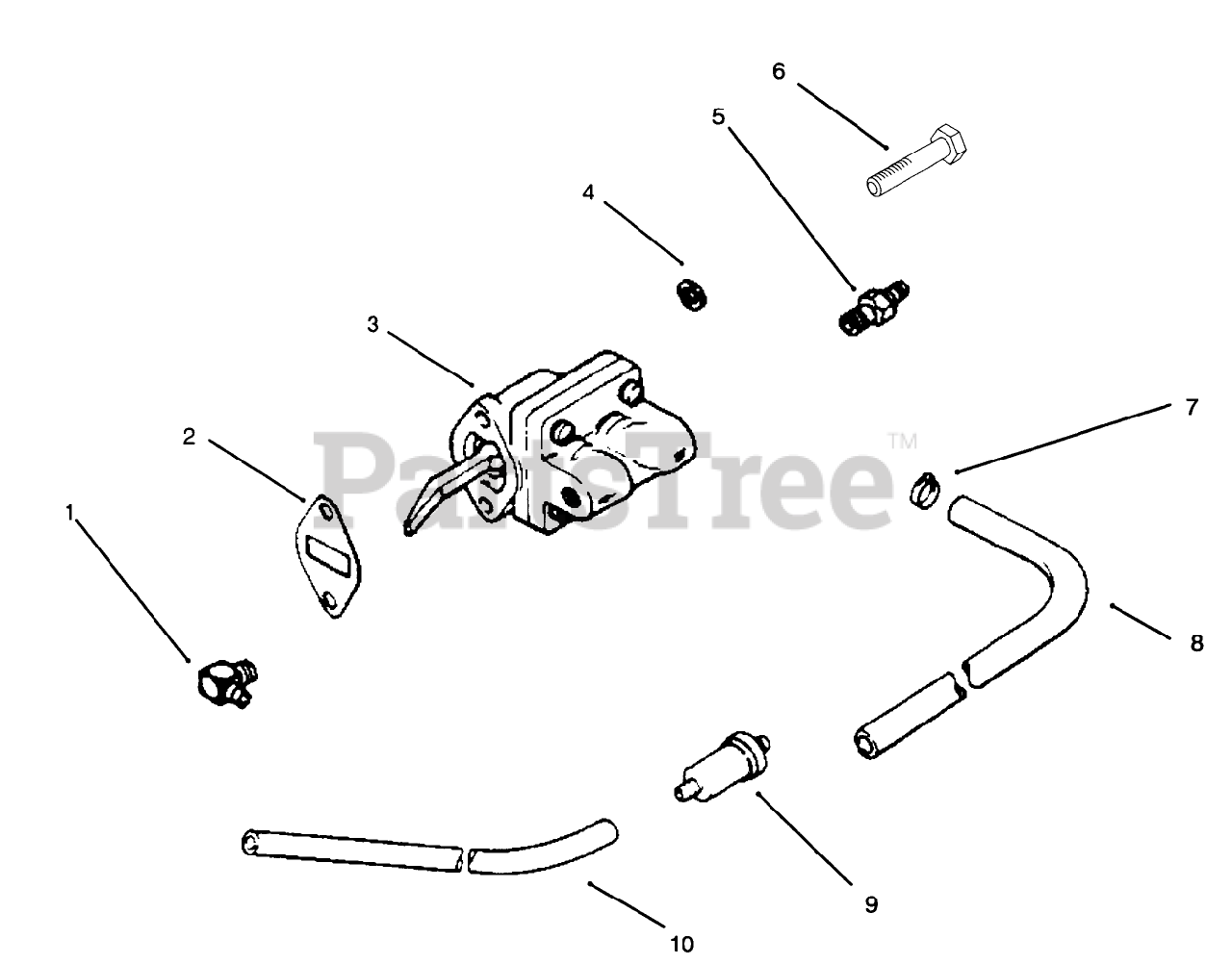

FUEL PUMP, LINE AND FILTER Parts Diagram

  • Title

1

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$14.99

$

In Stock, only 1 left!

0

2

2504109

Gasket-Fuel Pump

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

5255901

Pump-Fuel (Incl. Ref.#1-5)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.49

$

In Stock, only 3 left!

0

5

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

In Stock, only 1 left!

0

6

4708608

Screw-Posidriv T.H.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$4.99

$

In Stock, only 2 left!

0

8

5235318

Line-Fuel

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

2505003

Filter-Fuel

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

10

2535303

Line-Fuel

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available
