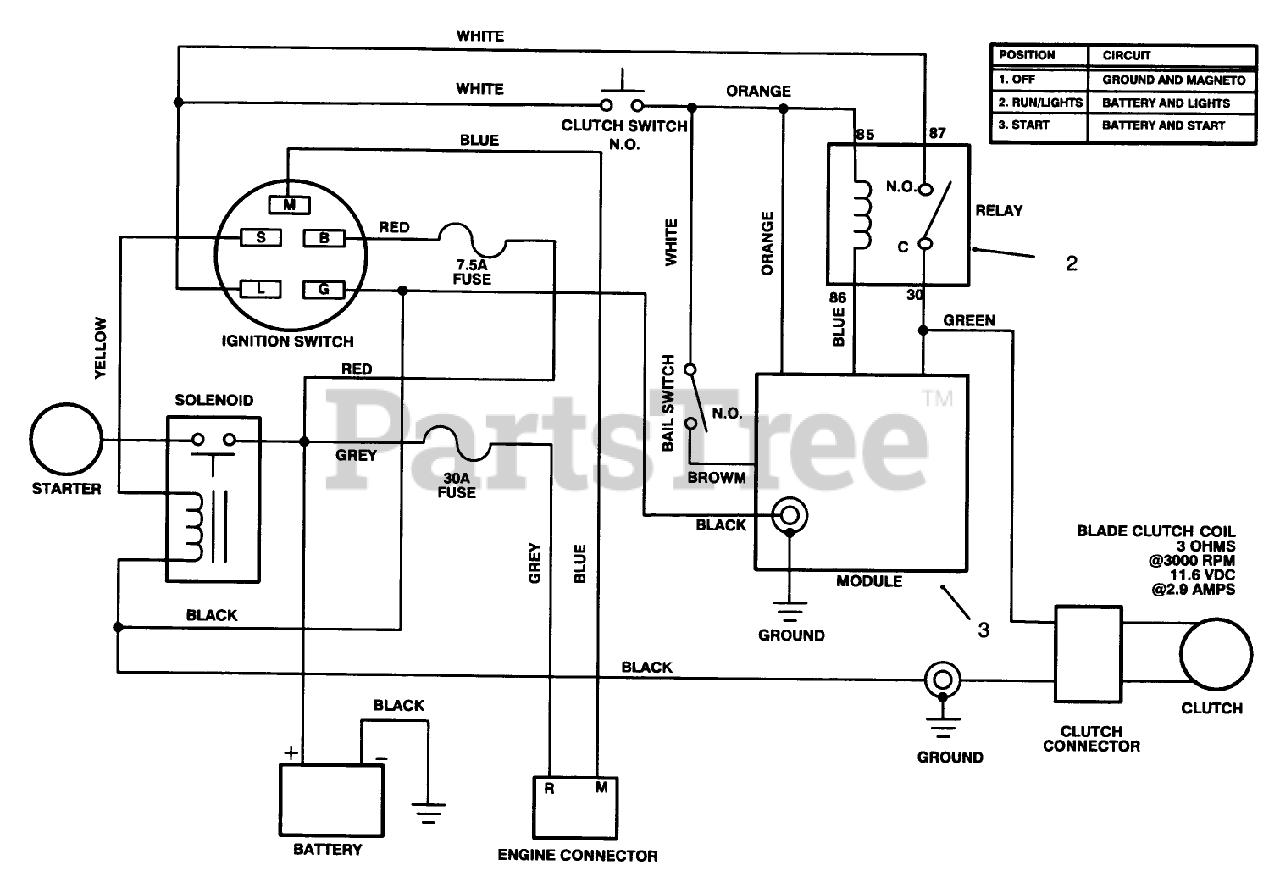

30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 93-7439

HARNESS - WIRE

$

$

Not available

2

Toro 63-7590

RELAY

$79.99

$

Usually ships in 3-6 days

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available
