30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) CRANKCASE, OIL PAN AND EXHAUST GASKET Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

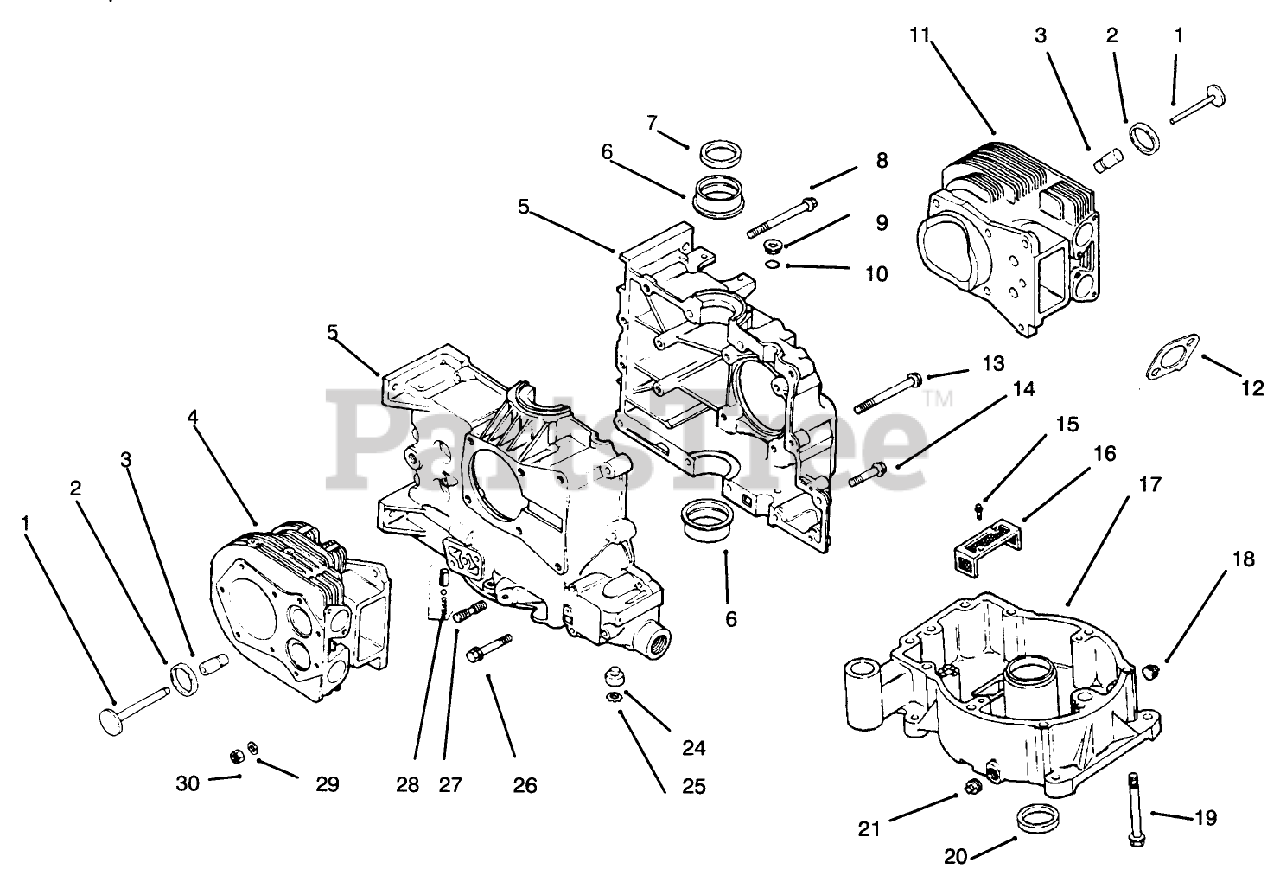

CRANKCASE, OIL PAN AND EXHAUST GASKET Parts Diagram

  • Title

1

Valve Exhaust (Ref)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

Valve-Intake (Ref)

Note: Not illustrated

$

$

Not available

Valve-Intake (Ref)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

5203101

Inset-Valve Seat

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

5231606

Guide-Valve

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

8275516

Kit-#2 Cylinder Barrel (Incl. Ref. #1-3)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

Crankcase (Ref. Short Block)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5252230

Short Block

Note: Not illustrated

$

$

Not available

5252230

Short Block

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5275594

Gasket Set

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5275594

Gasket Set

Note: Not illustrated

$

$

Not available

6

5203010

Bearing-Sleeve (Std.)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5203011

Bearing-Sleeve (.010)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5203011

Bearing-Sleeve (.010)

Note: Not illustrated

$

$

Not available

5203012

Bearing-Sleeve (.020)

Note: Not illustrated

$

$

Not available

5203012

Bearing-Sleeve (.020)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

Kohler 52 032 10

SeaI-RearOil
(Superseded to 52 032 10-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$23.99

$

In Stock, only 1 left!

0

8

2508611

Screw-Hex Flange

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

5213908

Plug

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

10

5214102

O-Ring

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

11

8275517

Kit-#2 Cylinder Barrel (Incl. Ref. #1-3)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

12

5204114

Gasket-Exhaust

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

2508613

Screw-Hex. Flange

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

14

2508610

Screw-Hex. Flange

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

15

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.99

$

Usually ships in 2-5 days

0

16

5205003

Filter-Oil Pickup

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

17

5219912

Pan-Oil

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

18

Kohler X-75-38

Plug-Hex Countersunk
(Superseded to X-75-38-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0

19

5208612

Screw-Hex. Washer Hd.

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

20

Kohler 52 032 10

SeaI-RearOil
(Superseded to 52 032 10-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$23.99

$

In Stock, only 1 left!

0

21

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.49

$

In Stock, only 3 left!

0

24

5207805

Shaft-Governor

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

25

Kohler X-269-43

Ring-Retaining
(Superseded to X-269-43-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

Usually ships in 2-5 days

0

26

2508612

Screw-Hex. Flange

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

27

5207212

Stud-Step

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

28

5275550

Kit-Oil Relief

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

29

5246812

Washer-Flat

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

30

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0
