30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) BLOWER HOUSING AND BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

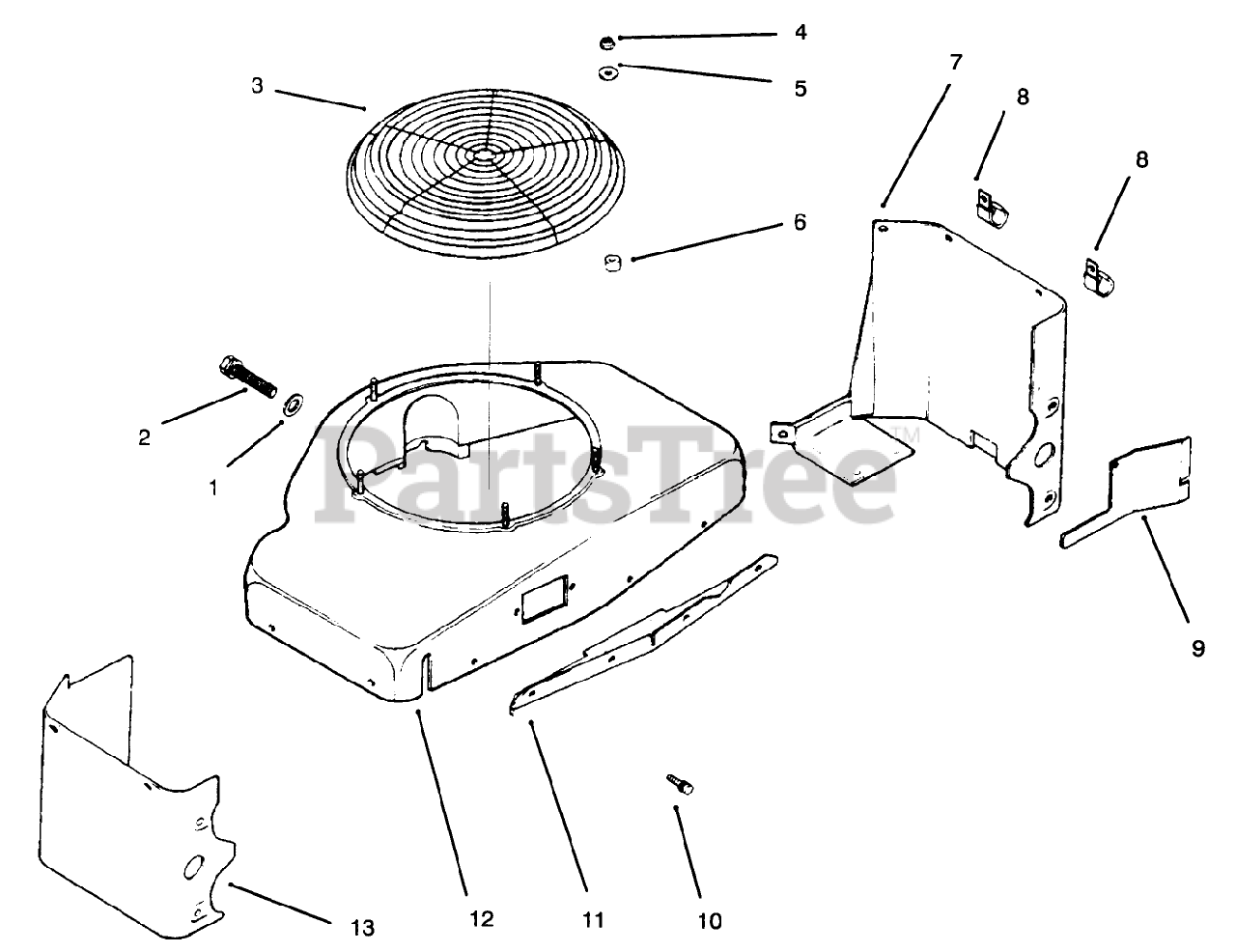

BLOWER HOUSING AND BAFFLES Parts Diagram

  • Title

1

5246816

Washer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

Kohler 52 086 11

Screw-Self Tap
(Superseded to 52 086 11-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

4731401

Guard-Grass Screen

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4

Kohler X-101-9

Nut-Lock
(Superseded to X-101-9-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.49

$

Usually ships in 2-5 days

0

5

2546803

Washer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

5211208

Spacer

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

5206321

Baffle-Cylinder Head

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

8

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$5.49

$

In Stock, only 4 left!

0

9

5206301

Baffle-Cylinder Head

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

10

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$2.49

$

In Stock, only 1 left!

0

11

5221701

Support-Upper Housing

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

12

Kohler 82 755 01

Kit-Blower Housing (Incl. Ref. #1, 2 & 11)
(Superseded to 82 755 01-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

5212423

Baffle-Cylinder Head

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4511311

Decal-Horsepower

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

4511311

Decal-Horsepower

Note: Not illustrated

$

$

Not available
