30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 069000001 - 069999999) (1996) AIR CLEANER/INTAKE Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

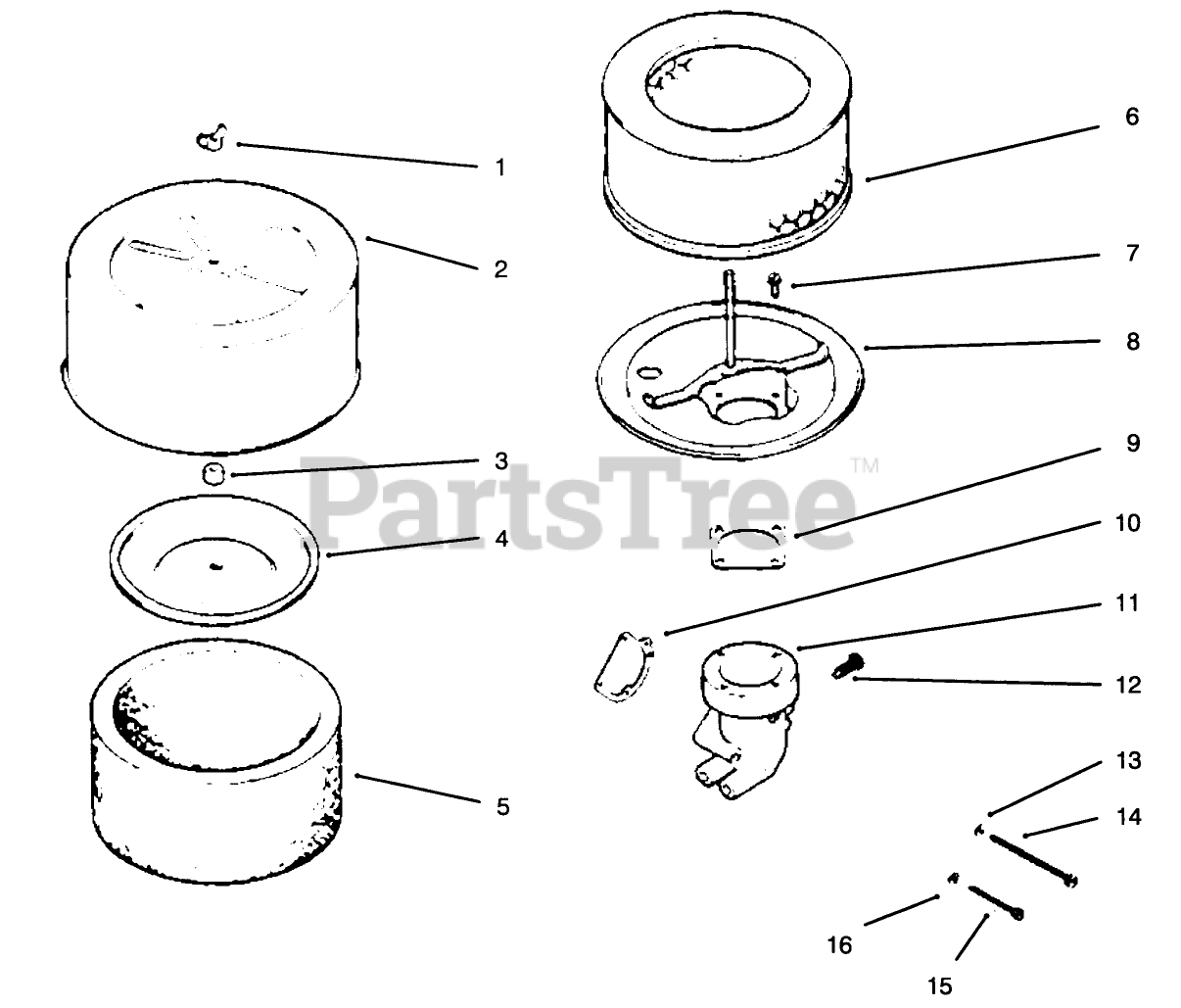

AIR CLEANER/INTAKE Parts Diagram

  • Title
1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2

4508201

Cover-Air Cleaner

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

3

Kohler 231032

Seal
(Superseded to 231032-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$8.49

$

Usually ships in 2-5 days

0

4

5208204

Cover-Element

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

5

4508301

Precleaner

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

6

4508302

Element

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

7

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.49

$

Usually ships in 2-5 days

0

8

5209406

Base-Air Cleaner

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

9

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$8.49

$

In Stock, Qty 5

0

10

2504106

Gasket-Elbow

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

11

Kohler 52 754 02

Elbow-Kit (Incl. Ref. #10 & 12)
(Superseded to 52 754 02-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

12

Kohler 52 086 11

Screw-Self Tap
(Superseded to 52 086 11-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

13

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

In Stock, only 2 left!

0

14

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

In Stock, only 4 left!

0

15

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

16

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$3.99

$

In Stock, only 1 left!

0

2511307

Decal-Air Cleaner

Note: ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519

$

$

Not available

2511307

Decal-Air Cleaner

Note: Not illustrated

$

$

Not available
