30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) GOVERNORENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

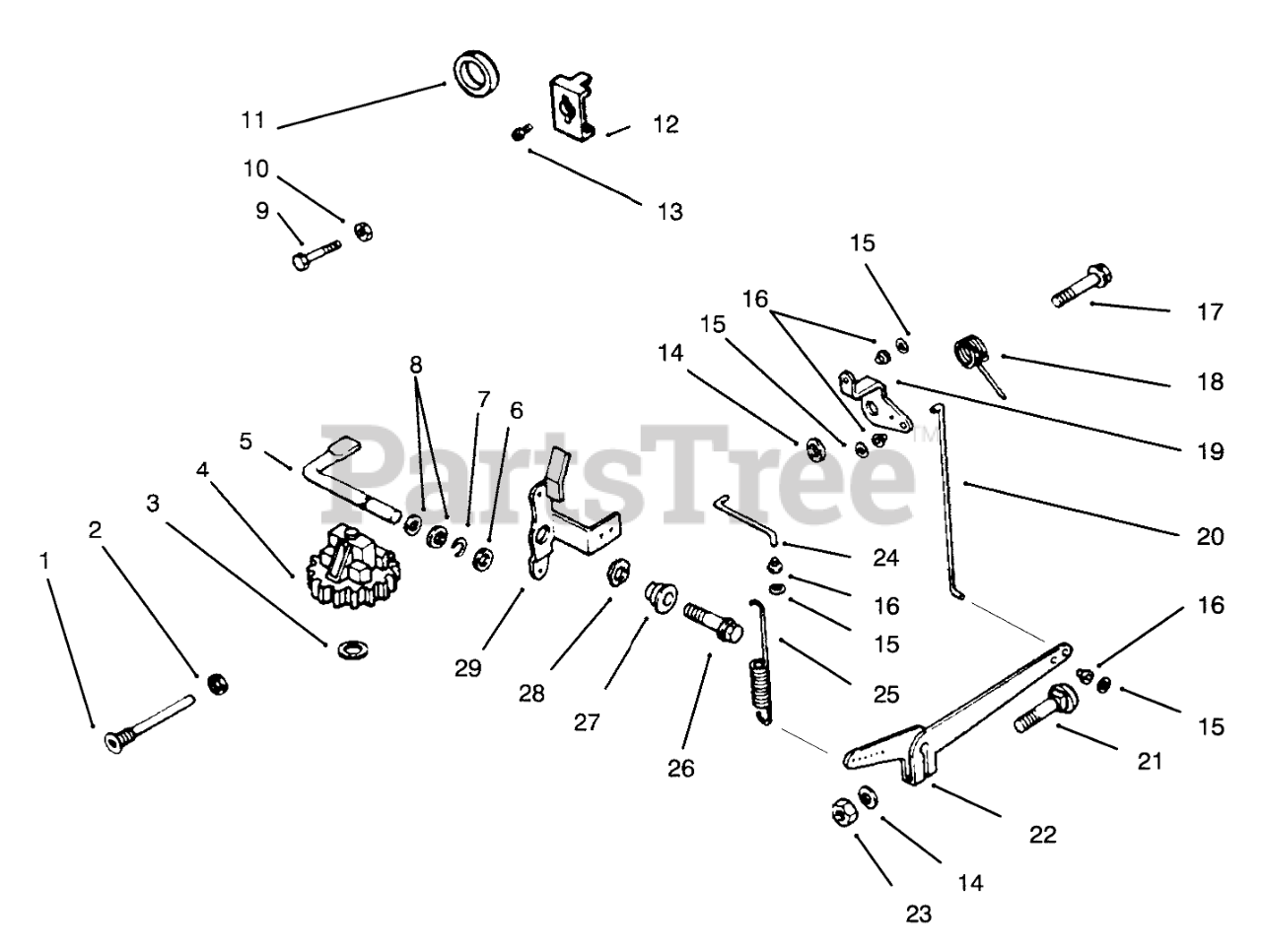

GOVERNORENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title
1

Toro 231355

Pin-GovemorStop

$

$

Currently unavailable

2

Toro X-25-12

Washer

$

$

Currently unavailable

3

Toro 237022

Washer
(Superseded to 702363)

$

$

Not available

4

Toro A-235743-S

Governor Gear

$

$

Currently unavailable

5

5207804

Shaft-Governor Cross

$

$

Not available

6

Toro X-25-63

Washer

$

$

Currently unavailable

7

Toro X-269-28

Retainer-Governor

$

$

Currently unavailable

8

Toro X-25-102

Washer

$

$

Currently unavailable

9

5208605

Screw-Hex. Hd.

$

$

Not available

10

$

$

Currently unavailable

11

2543101

Spacer

$

$

Not available

12

1223701

Clamp

$

$

Not available

13

Toro X-67-38

Screw

$

$

Currently unavailable

14

Toro X-25-72

Washer

$

$

Currently unavailable

15

2514103

Ring

$

$

Not available

16

2515808

Bushing-Linkage

$

$

Not available

17

2508621

Screw-HexWash. Hd.

$

$

Not available

18

5208908

Spring-Torsion

$

$

Not available

19

5209014

Lever-Throttle

$

$

Not available

20

5207907

Linkage-Governor

$

$

Not available

21

5221104

Screw-R.H. Sq. Neck

$

$

Not available

22

5218609

Arm-Grovernor

$

$

Not available

23

$

$

Currently unavailable

24

5207906

Linkage-Throttle

$

$

Not available

25

5208907

Spring-Governor

$

$

Not available

26

2508615

Screw-Hex. Washer Hd.

$

$

Not available

27

5215807

Bushing-Throttle Control

$

$

Not available

28

Toro 277341

Washer

$

$

Currently unavailable

29

5209025

Lever-Speed Control

$

$

Not available
