30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) CRANKCASE, OIL PAN AND EXHAUST GASKET ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

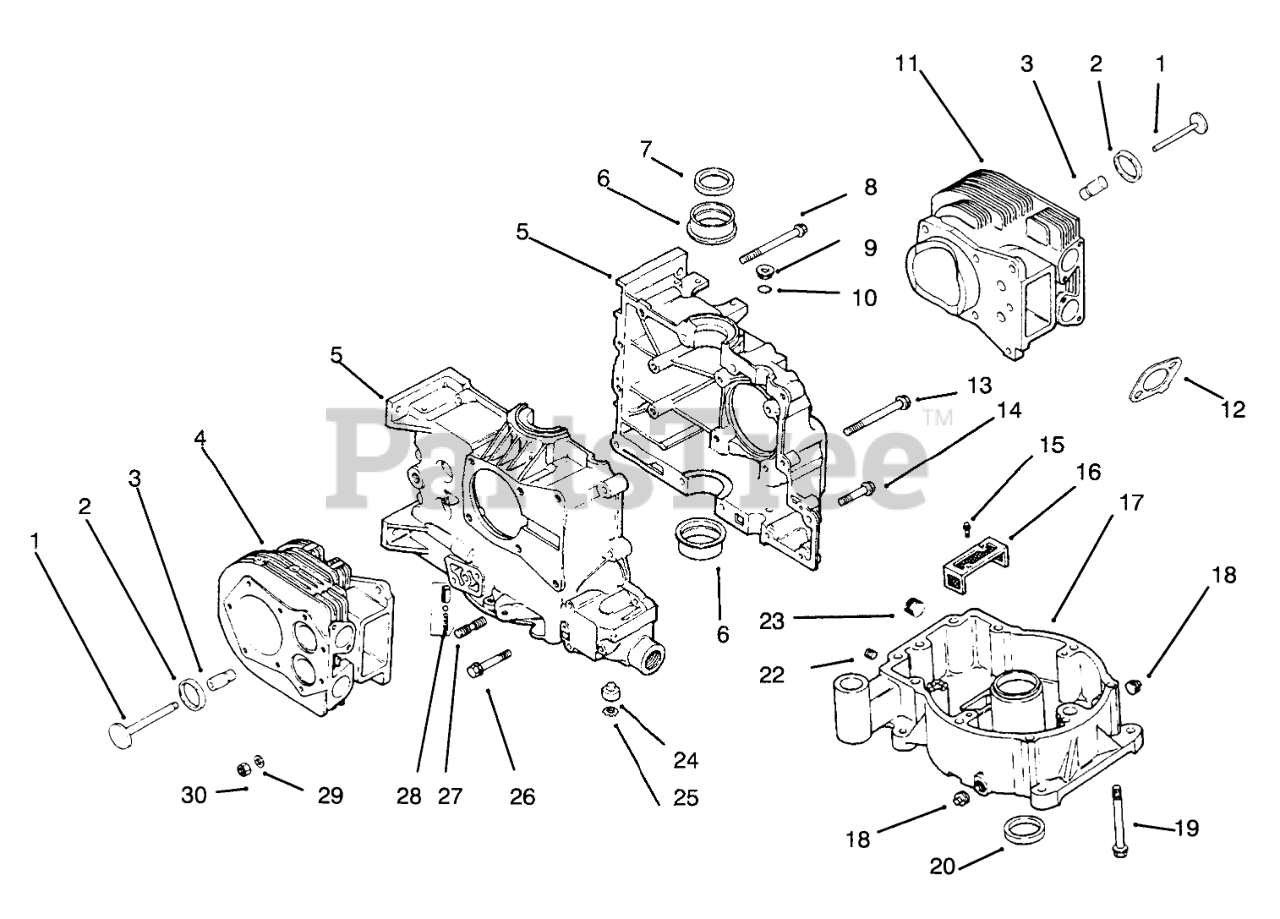

CRANKCASE, OIL PAN AND EXHAUST GASKET ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Valve-Exhaust (Ref)

$

$

Not available

Valve-Intake (Ref)

Note: Not illustrated

$

$

Not available

2

5203101

Inset-Valve Seat

$

$

Not available

3

5231606

Guide-Valve

$

$

Not available

4

8275517

Kit-#2 Cylinder Barrel(Incl. Ref. #1-3)

$

$

Not available

5

Crankcase (Ref. Short Block)

$

$

Not available

Toro 5252230

Short Block

Note: Not illustrated

$

$

Currently unavailable

5275594

Gasket Set

Note: Not illustrated

$

$

Not available

6

5203010

Bearing-Sleeve

$

$

Not available

5203011

Bearing-Sleeve (.010)

Note: Not illustrated

$

$

Not available

5203012

Bearing-Sleeve (.020)

Note: Not illustrated

$

$

Not available

7

5203210

Seal-Rear Oil

$

$

Not available

8

2508611

Screw-Hex Flange

$

$

Not available

9

5213908

Plug

$

$

Not available

10

5214102

O-Ring

$

$

Not available

11

8275516

Kit-#2 Cylinder Barrel(Incl. Ref. #1-3)

$

$

Not available

12

5204114

Gasket-Exhaust

$

$

Not available

13

2508613

Screw-Hex. Flange

$

$

Not available

14

2508610

Screw-Hex. Flange

$

$

Not available

15

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

16

5205003

Filter-Oil Pickup

$

$

Not available

17

5219903

Pan-Oil

$

$

Not available

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

5208612

Screw-Hex. Washer Hd.

$

$

Not available

20

5203210

Seal-Rear Oil

$

$

Not available

22

Kohler X-75-38

Plug-Hex Countersunk
(Superseded to X-75-38-S)

$3.49

$

Usually ships in 2-5 days

0

23

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

24

5207805

Shaft-Governor

$

$

Not available

25

Kohler X-269-43

Ring-Retaining
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

26

2508612

Screw-Hex Flange

$

$

Not available

27

5207212

Stud-Step

$

$

Not available

28

5275550

Kit-Oil Relief

$

$

Not available

29

5246812

Washer-Flat

$

$

Not available

30

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0
