30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) CARBURETOR ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

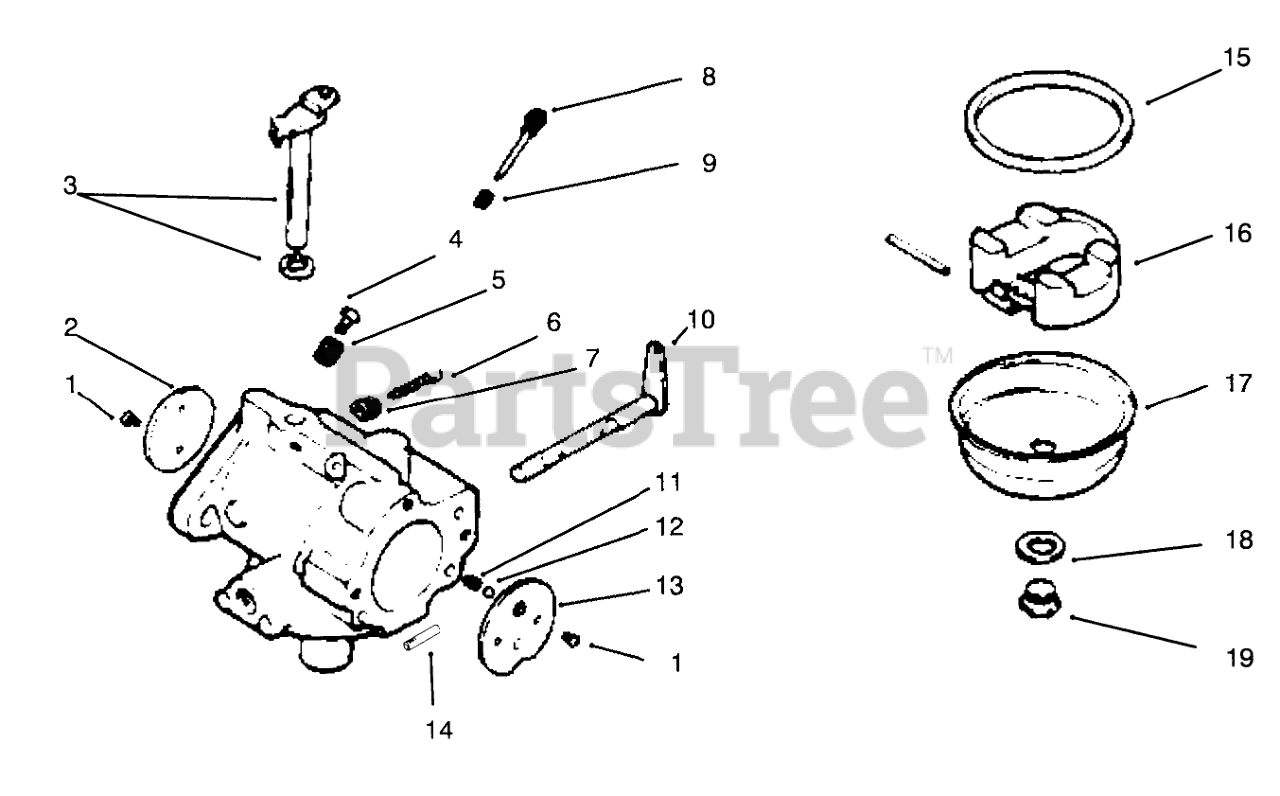

CARBURETOR ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

2508627

Screw

$

$

Not available

2

2514602

Plate-Throttle

$

$

Not available

3

5214416

Shaft-Throttle

$

$

Not available

4

2536801

Needle-Idle Fuel Adj.

$

$

Not available

5

2508902

Screw-Bowl

$

$

Not available

6

Toro 2508626

Screw-Idle Speed Adj.

$

$

Currently unavailable

7

Toro 2508904

Spring-Idle Speed

$

$

Currently unavailable

8

2536803

Needle-Main Fuel

$

$

Not available

9

2508902

Screw-Bowl

$

$

Not available

10

5209013

Lever-Choke

$

$

Not available

11

Toro 2508903

Spring-Choke Friction

$

$

Currently unavailable

12

2519401

Ball-Choke Friction

$

$

Not available

13

2514603

Plate-Choke

$

$

Not available

14

5233706

Jet-Main

$

$

Not available

15

Toro 2504104

Gasket

$

$

Currently unavailable

16

2575709

Kit-Float (Incl. Pin)

$

$

Not available

17

2510401

Bowl-Fuel

$

$

Not available

18

2504103

Gasket-Retainer Screw

$

$

Not available

19

Toro 2510005

Screw-Bowl Retainer

$

$

Currently unavailable

2575711

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available

5275598

Kit-High Altitude

Note: Not illustrated

$

$

Not available
