30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) BREATHER AND VENT ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

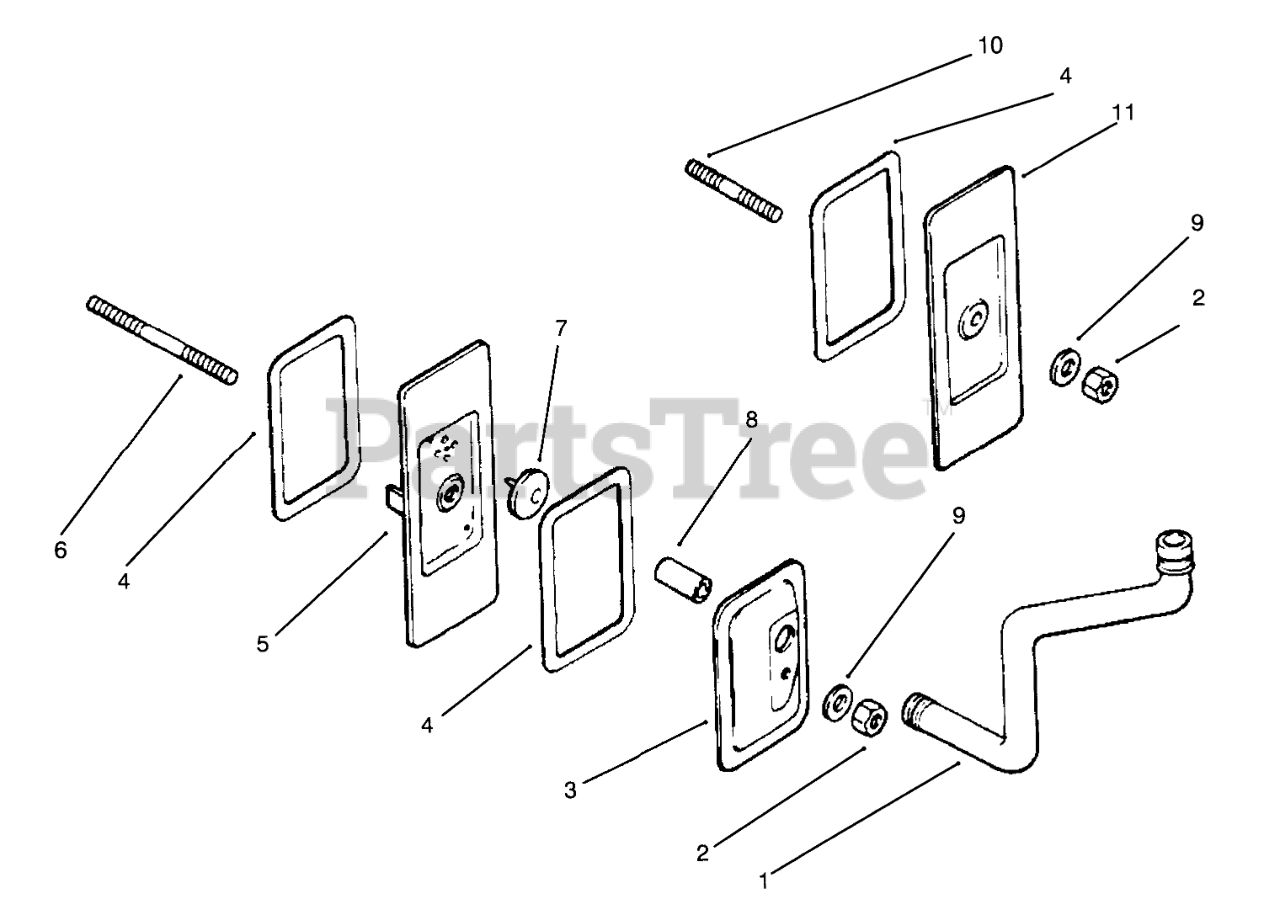

BREATHER AND VENT ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title
1

5232612

Hose-Breather

$

$

Not available

2

$

$

Currently unavailable

3

5209608

Cover-#1 Upper Cyl. Valve

$

$

Not available

4

5205501

Gasket-Cover

$

$

Not available

5

5209622

Cover-#1 Lower Cyl. Valve

$

$

Not available

6

Kohler 275220

Stud
(Superseded to 275220-S)

$

$

Not available

7

5246201

Valve-Umbrella

$

$

Not available

8

5203204

Seal-Breather

$

$

Not available

9

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

10

Toro X-325-39

Stud-Valve Cover

$

$

Currently unavailable

11

5209618

Cover-Cylinder Valve

$

$

Not available
