30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) BATTERY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

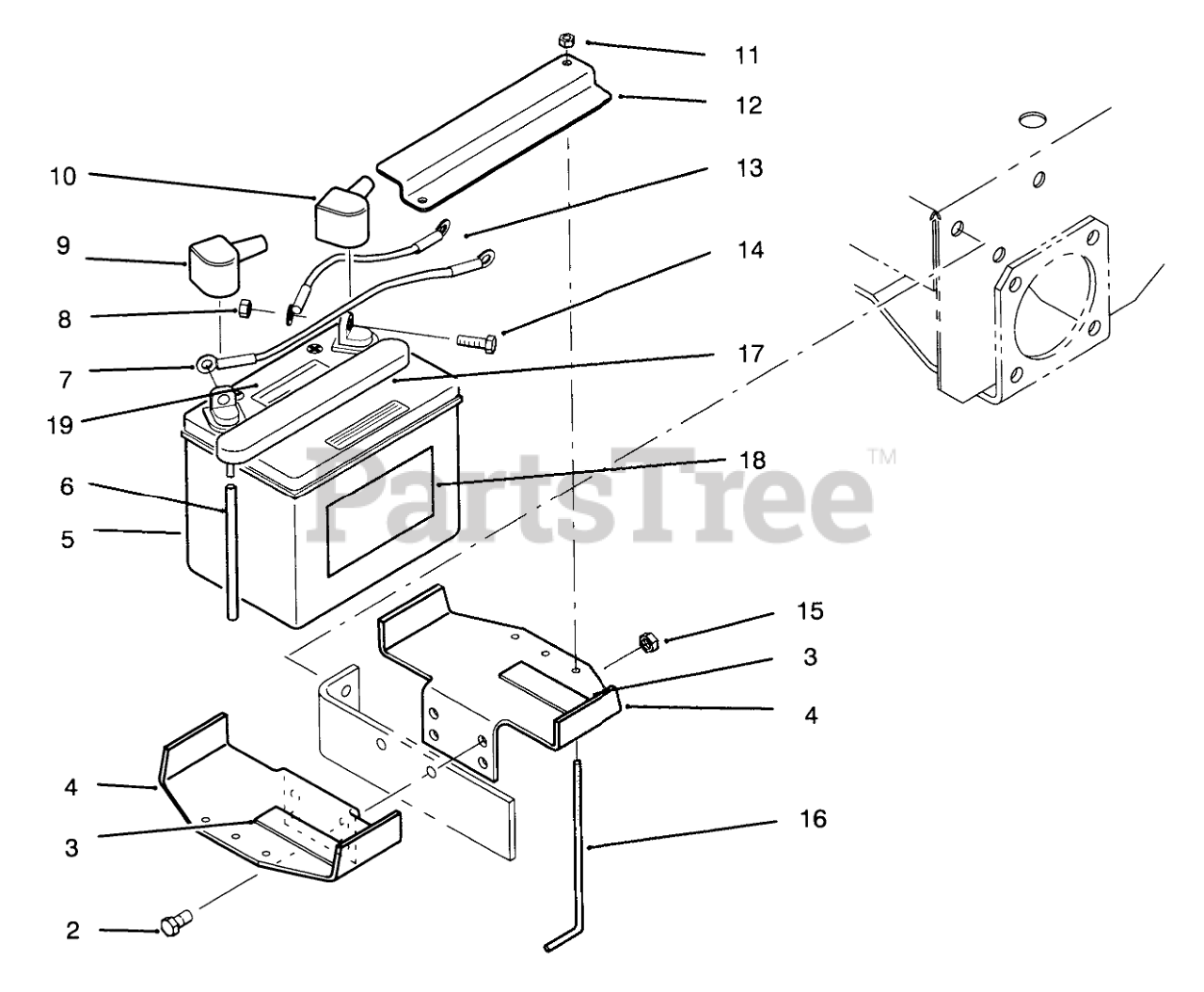

BATTERY Parts Diagram

  • Title

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

4

Toro 92-2350

Battery
(Superseded to 92-2350-01)

$

$

Not available

5

Toro 82-4640

Battery
(Superseded to 104-8162)

$

$

Not available

6

Toro 68-3810

TUBE-VENT

$

$

Not available

7

Toro 54-3090

WIRE ASM

$

$

Not available

8

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

9

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

10

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 82-4620

Clamp-Battery
(Superseded to 82-4620-01)

$

$

Not available

13

Toro 28-3893

WIRE ASM

$

$

Not available

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

17

Toro 84-1830

CAP

$

$

Not available

18

Toro 93-6668

DECAL-BATTERY

$20.99

$

Usually ships in 3-6 days

0

19

Toro 93-7276

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0
