30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) OIL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

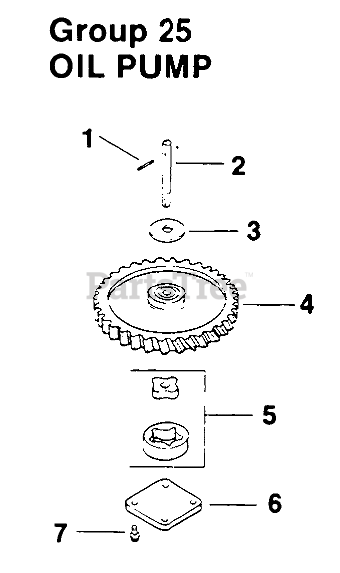

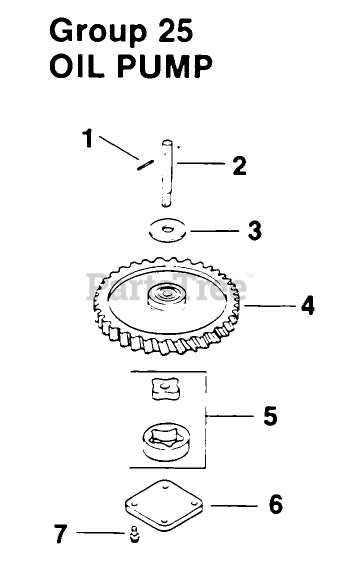

OIL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 9

0

2

Kohler 52 144 05

Shaft-OiIPump
(Superseded to 52 144 05-S)

$26.99

$

Usually ships in 2-5 days

0

3

5242201

Spacer-Shim

$

$

Not available

4

Kohler 52 043 05

Gear-OiIPump
(Superseded to 52 043 05-S)

$

$

Not available

5

Kohler 52 393 09

Rotor Set
(Superseded to 52 393 09-S)

$158.99

$

Usually ships in 2-5 days

0

6

Kohler 52 096 03

Cover-Oil Pump
(Superseded to 52 096 03-S)

$

$

Not available

7

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0
