30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) GOVERNOR-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

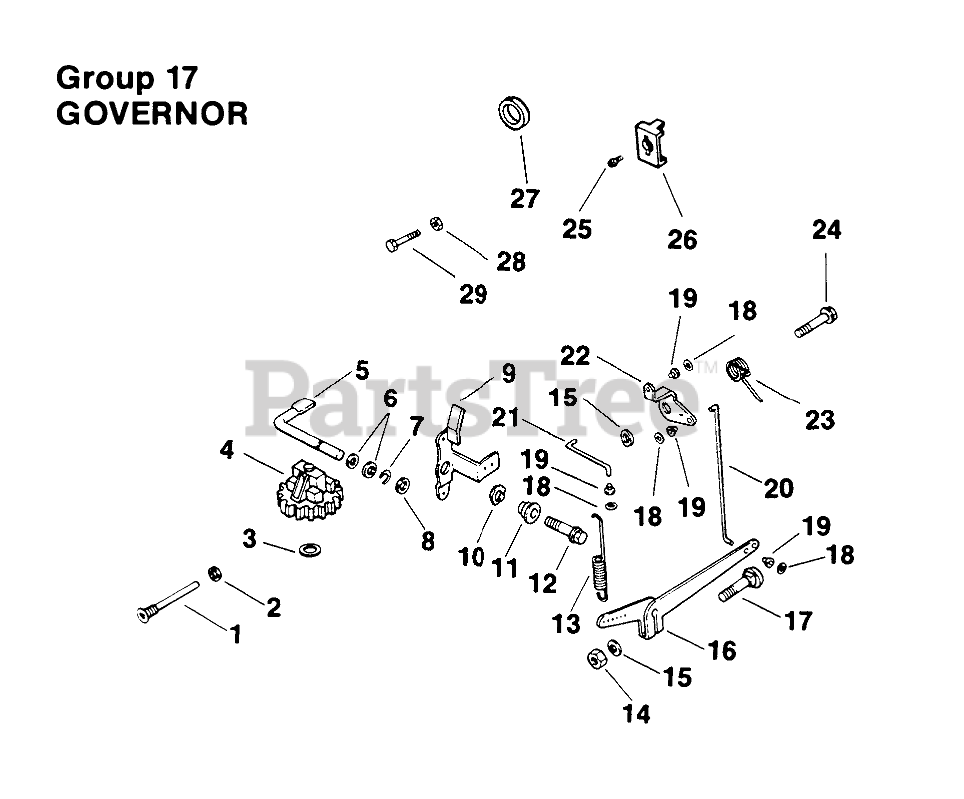

GOVERNOR-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

2

Kohler 237022

Washer
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

4

Kohler A-235743-S

Governor Gear

$

$

Not available

5

5207804

Shaft-Governor Cross

$

$

Not available

6

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 6

0

7

Kohler X-269-28

Retainer-Governor
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

9

5209025

Lever-Speed Control

$

$

Not available

10

Kohler 277341

Washer
(Superseded to 277341-S)

$7.49

$

Usually ships in 2-5 days

0

11

5215807

Bushing-Throttle Control

$

$

Not available

12

2508615

Screw-Hex. Washer Hd.

$

$

Not available

13

5208907

Spring-Governor

$

$

Not available

14

Toro x-81-1

Nut

$

$

Currently unavailable

15

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, only 2 left!

0

16

5218609

Arm-Governor

$

$

Not available

17

5221104

Bolt

$

$

Not available

18

2514103

Ring

$

$

Not available

19

25 158 8

Bushing-Linkage

$

$

Not available

20

5207907

Linkage-Governor

$

$

Not available

21

Kohler 52 079 06

Unkage-Throttle
(Superseded to 52 079 06-S)

$

$

Not available

22

5209014

Lever-Throttle

$

$

Not available

23

5208908

Spring-Torsion

$

$

Not available

24

Kohler 25 086 21

Screw-Hex Wash. Hd.
(Superseded to 25 086 21-S)

$

$

Not available

25

Kohler X-67-38

Screw
(Superseded to X-67-38-S)

$

$

Not available

26

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

27

2543101

Spacer

$

$

Not available

28

Kohler X-70-3

Nut
(Superseded to X-70-3-S)

$3.49

$

Usually ships in 2-5 days

0

29

5208605

Screw-Hex. Hd.

$

$

Not available
