30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) FLYWHEEL-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

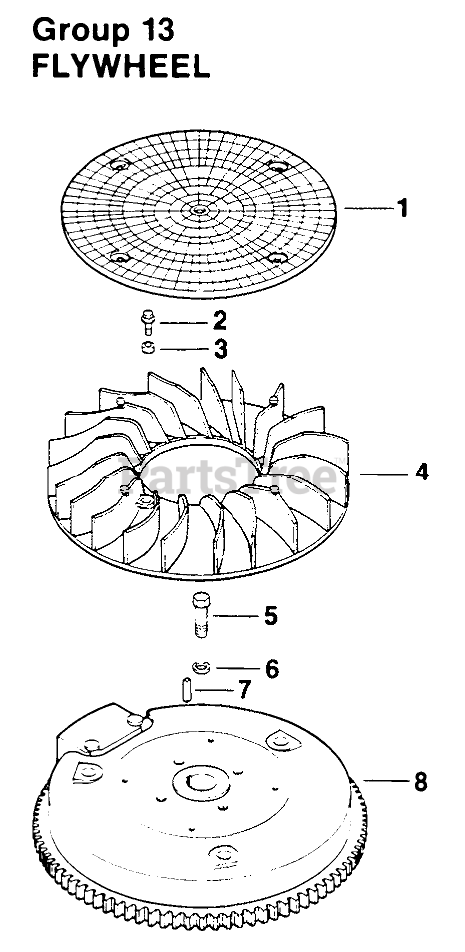

FLYWHEEL-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title
1

2516201

Screen-Grass

$

$

Not available

2

Kohler 25 086 21

Screw-Hex Wash. Hd.
(Superseded to 25 086 21-S)

$

$

Not available

3

2511204

Spacer

$

$

Not available

4

2515701

Fan

$

$

Not available

5

Kohler 25 086 24

Screw-Hex Mach.
(Superseded to 25 086 24-S)

$3.49

$

Usually ships in 2-5 days

0

6

5246815

Washer-Flat

$

$

Not available

7

Kohler X-286-17

Key
(Superseded to X-286-17-S)

$3.49

$

In Stock, only 1 left!

0

8

5202536

Flywheel

$

$

Not available
