30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) CARBURETOR-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

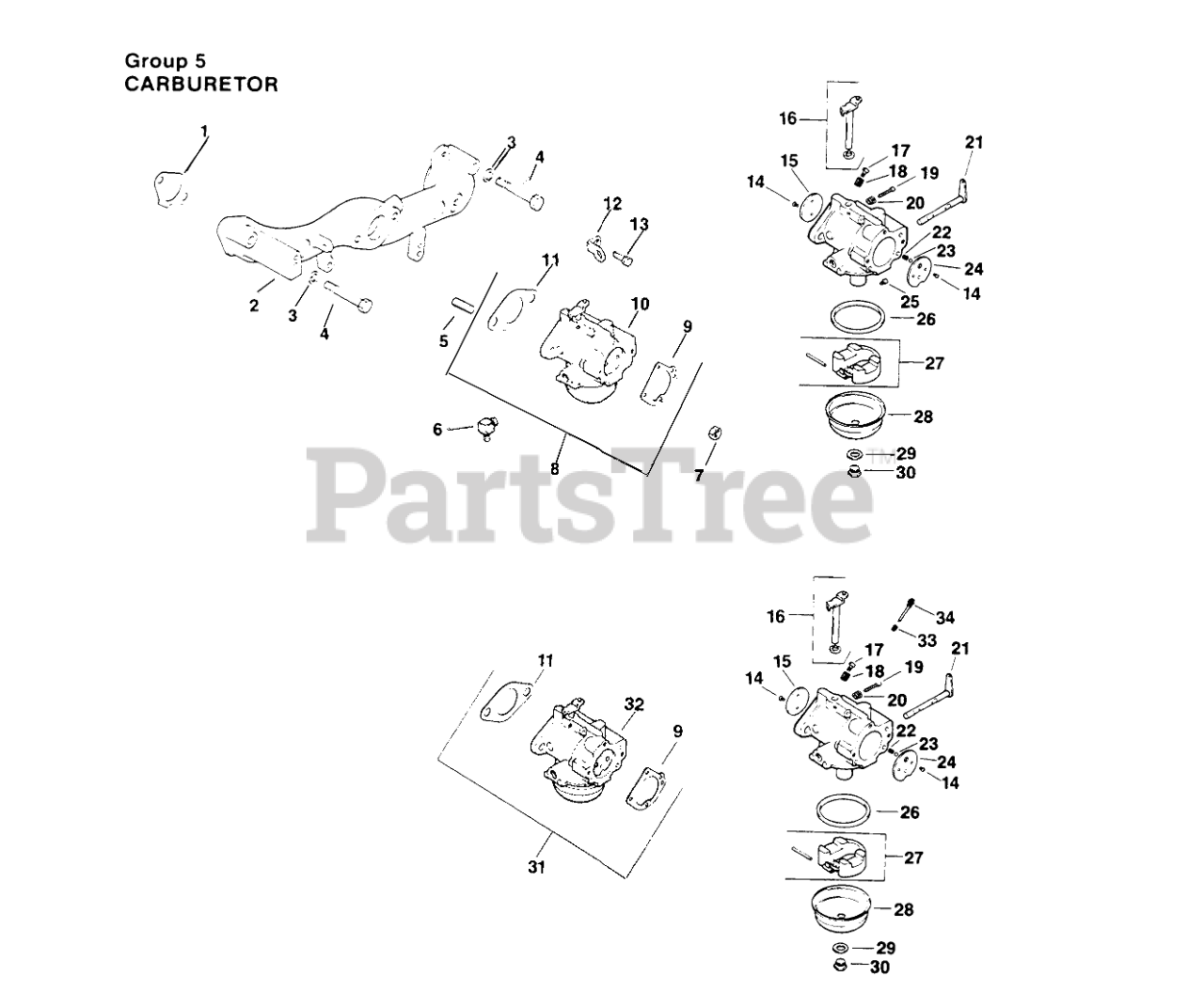

CARBURETOR-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

5204109

Gasket-Intake Manifold

$

$

Not available

2

Kohler 52 164 14

Manifold, Intake
(Superseded to 52 755 91-S)

$

$

Not available

3

Kohler X-21-1

Washer
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

4

Kohler X-6-29

Screw
(Superseded to X-6-29-S)

$3.49

$

In Stock, only 4 left!

0

5

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

6

25515502

Connector-Hose

$

$

Not available

7

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

8

5285309

Carburetor Kit w/Gaskets

$

$

Not available

9

2504106

Gasket-Elbow

$

$

Not available

10

5205334

Carburetor Assembly For Information Only

$

$

Not available

11

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 232867

Strap Lifting
(Superseded to 28 445 01-S)

$

$

Not available

13

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

14

2508627

Screw

$

$

Not available

15

2514602

Plate-Throttle

$

$

Not available

16

Kohler 52 144 16

Shaft-Throttle w/Lever & Seal
(Superseded to 52 144 24-S)

$

$

Not available

17

2536801

Needle-Idle Fuel Adj.

$

$

Not available

18

2508902

Spring

$

$

Not available

19

Toro 2508626

Needle-Main Fuel

$

$

Currently unavailable

20

Toro 2508904

Spring

$

$

Currently unavailable

21

5209013

Lever-Choke

$

$

Not available

22

Toro 2508903

Spring-Choke Friction

$

$

Currently unavailable

23

2519401

Ball-Choke Friction

$

$

Not available

24

2514603

Plate-Choke

$

$

Not available

25

5233706

Jet-Main

$

$

Not available

26

Toro 2504104

Gasket-Bowl

$

$

Currently unavailable

27

2575709

Kit-Float

$

$

Not available

28

2510401

Bowl-Fuel

$

$

Not available

29

2504103

Gasket-Retainer Screw

$

$

Not available

30

Toro 2510005

Screw-Bowl Retainer

$

$

Currently unavailable

31

Kohler 52 853 25

Carburetor Kit w/Linkage
(Superseded to 52 853 25-S)

$

$

Not available

32

Kohler 52 053 54

Carburetor Assembly For Information Only

$

$

Not available

33

2508902

Spring

$

$

Not available

34

Kohler 25 368 03

Needle-Main Fuel
(Superseded to 25 368 03-S)

$9.99

$

Usually ships in 2-5 days

0

Kohler 25 757 11

Carburetor Repair Kit
(Superseded to 25 757 11-S)

Note: Not illustrated

$88.99

$

In Stock, Qty 6

0

5275598

Kit-High Altitude

Note: Not illustrated

$

$

Not available
