30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) BAFFLE & SHROUD-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

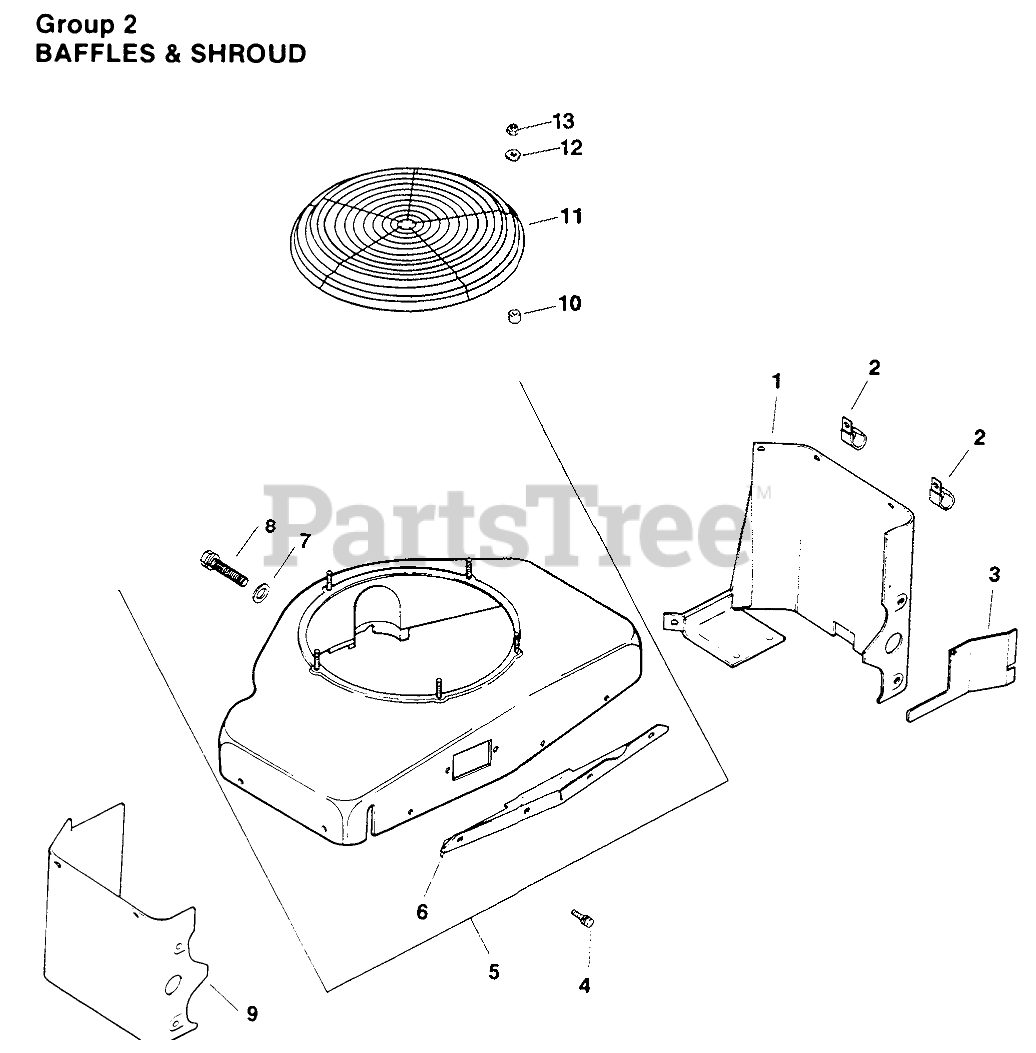

BAFFLE & SHROUD-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

5206321

Baffle-Cylinder Head

$

$

Not available

2

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

$5.49

$

In Stock, only 4 left!

0

3

5206301

Baffle-Cylinder Head

$

$

Not available

4

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

5

Kohler 82 755 01

Kit-Blower Housing (Incl. Ref. #6-8)
(Superseded to 82 755 01-S)

$

$

Not available

6

5221701

Support-Upper Housing

$

$

Not available

7

5246816

Washer

$

$

Not available

8

Kohler 52 086 11

Screw-Self Tap
(Superseded to 52 086 11-S)

$

$

Not available

9

5212423

Baffle-Cylinder Head

$

$

Not available

10

Kohler 52 112 12

Spacer
(Superseded to 52 112 12-S)

$5.99

$

Usually ships in 2-5 days

0

11

4731401

Guard-Grass Screen

$

$

Not available

12

2546803

Washer

$

$

Not available

13

Kohler X-101-12

Locknut
(Superseded to X-101-12-S)

$

$

Not available

Kohler 45 113 07

Decal-Horsepower

Note: Not illustrated

$

$

Not available
