30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

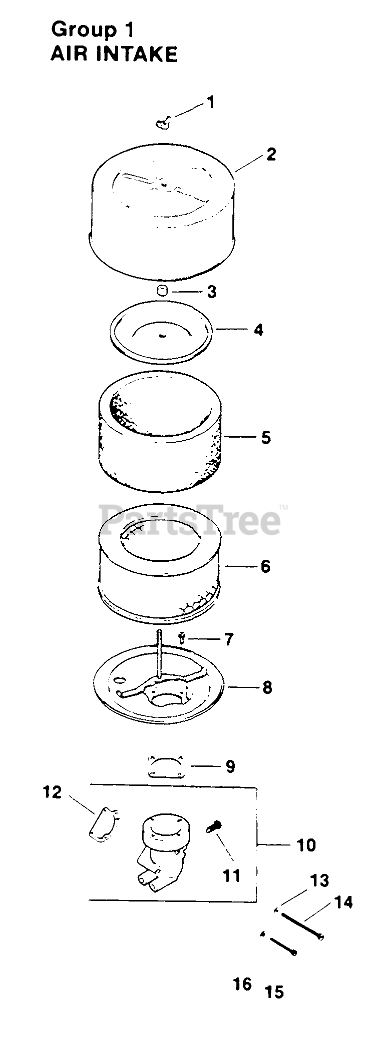

AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

4508201

Cover-Air Cleaner

$

$

Not available

3

Kohler 231032

Seal
(Superseded to 231032-S)

$

$

Not available

4

5208204

Cover-Element

$

$

Not available

5

4508301

Precleaner

$

$

Not available

6

4508302

Element

$

$

Not available

7

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

$3.49

$

Usually ships in 2-5 days

0

8

5209406

Base-Air Cleaner

$

$

Not available

9

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 6

0

10

Kohler 52 754 02

Elbow-Kit (Incl. Ref. #11 & 12)
(Superseded to 52 754 02-S)

$

$

Not available

11

Kohler 52 086 11

Screw-Self Tap
(Superseded to 52 086 11-S)

$

$

Not available

12

2504106

Gasket-Elbow

$

$

Not available

13

Toro X-22-79

Washer-Flat

$

$

Currently unavailable

14

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

$3.99

$

In Stock, only 4 left!

0

15

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

$

$

Not available

16

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

2511307

Decal-Air Cleaner

Note: Not illustrated

$

$

Not available
