30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 PISTON & ROD GROUP 22 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

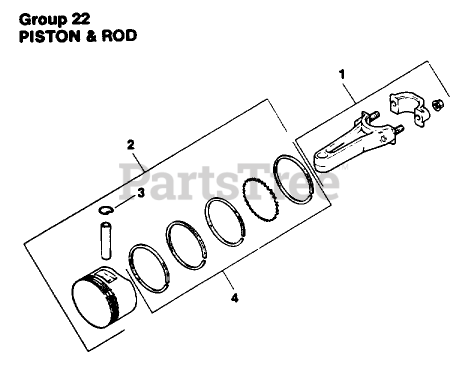

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 PISTON & ROD GROUP 22 Parts Diagram

  • Title

1

5206767

Rod-Connecting (Std.)

$

$

Not available

5206768

Rod-Connecting (.010)

Note: Not illustrated

$

$

Not available

2

5287411

Piston-w/Ring Set (Std.)

$

$

Not available

5287412

Piston-w/Ring Set (.003)

Note: Not illustrated

$

$

Not available

5287413

Piston-w/Ring Set (.010)

Note: Not illustrated

$

$

Not available

5287414

Piston-w/Ring Set (.020)

Note: Not illustrated

$

$

Not available

5287415

Piston-w/Ring Set (.030)

Note: Not illustrated

$

$

Not available

3

Kohler 230004

Retainer, Pin
(Superseded to 230004-S)

$6.49

$

In Stock, only 2 left!

0

4

5210809

Ring-Set (Std. & .003)

$

$

Not available

Kohler 52 108 10

Ring-Set(.010)
(Superseded to 52 108 10-S)

Note: Not illustrated

$

$

Not available

Kohler 52 108 11

Ring-Set(.020)
(Superseded to 52 108 11-S)

Note: Not illustrated

$147.99

$

Usually ships in 2-5 days

0

5 2108 12

Ring-Set(.030)

Note: Not illustrated

$

$

Not available
