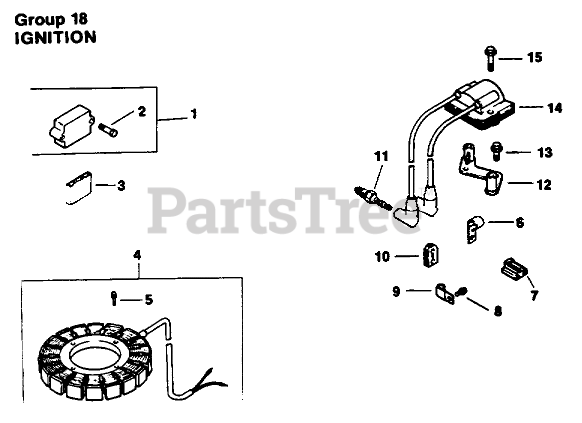

30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 IGNITION GROUP 18 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 IGNITION GROUP 18 Parts Diagram

  • Title

1

Kohler 25 755 03

Rectifier / Regulator (Incl. Ref.#2)
(Superseded to 25 755 03-S)

$125.99

$

In Stock, only 1 left!

0

2

Kohler X-132-5

Screw
(Superseded to X-132-5-S)

$3.49

$

In Stock, only 1 left!

0

3

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

4

Kohler 237878

Kit-Stator (Incl. Ref. #5)
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 8

0

5

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 235173

Clip
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

7

Kohler 236473

Connector
(Superseded to 236473-S)

$7.49

$

Usually ships in 2-5 days

0

8

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

$16.99

$

Usually ships in 2-5 days

0

10

5231302

Grommet

$

$

Not available

11

5213202

Spark Plug

$

$

Not available

12

5212608

Bracket-Module

$

$

Not available

13

2508615

Screw-Hex. Washer Hd.

$

$

Not available

14

5258402

Module-Ignition

$

$

Not available

15

2508616

Screw-Hex. Washer Hd.

$

$

Not available

4751833

Lead-Violet

$

$

Not available

5251819

Lead-White

$

$

Not available
