30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 FUEL PUMP GROUP 14 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

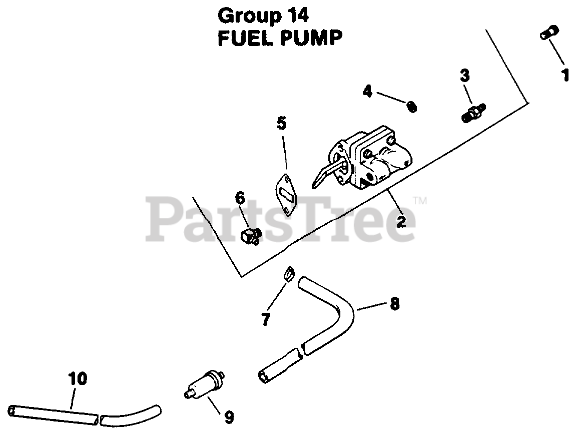

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 FUEL PUMP GROUP 14 Parts Diagram

  • Title
1

4708608

Screw-Posidriv T.H.

$

$

Not available

2

5255901

Pump-Fuel (Incl. Ref. #3-6)

$

$

Not available

3

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

2504109

Gasket-Fuel Pump

$

$

Not available

6

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

7

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

8

5235318

Line-Fuel

$

$

Not available

9

2505003

Filter-Fuel

$

$

Not available

10

2535303

Line-Fuel

$

$

Not available
