30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 039000001 - 039999999) (1993) OIL PAN-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

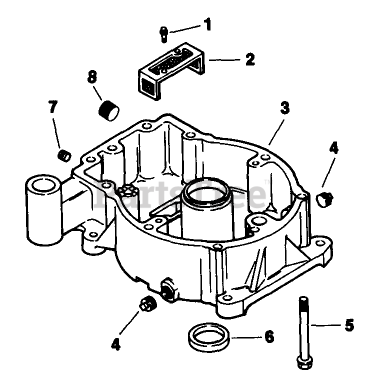

OIL PAN-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title
1

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$

$

Not available

2

Toro 52_050_03

Filter Oil Pickup

$

$

Currently unavailable

3

Toro 52_199_03

Pan-Oil

$

$

Currently unavailable

4

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

5

Toro 52_086_12

Screw-Hex Washer Hd.

$

$

Currently unavailable

6

Toro 52_032_10

Seal-ReAR Oil

$

$

Currently unavailable

7

Kohler X-75-38

Plug-Hex Countersunk
(Superseded to X-75-38-S)

$3.49

$

Usually ships in 2-5 days

0

8

Toro X-75.23

Plug-Countersunk Hex

$

$

Currently unavailable
