30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 039000001 - 039999999) (1993) FLYWHEEL-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

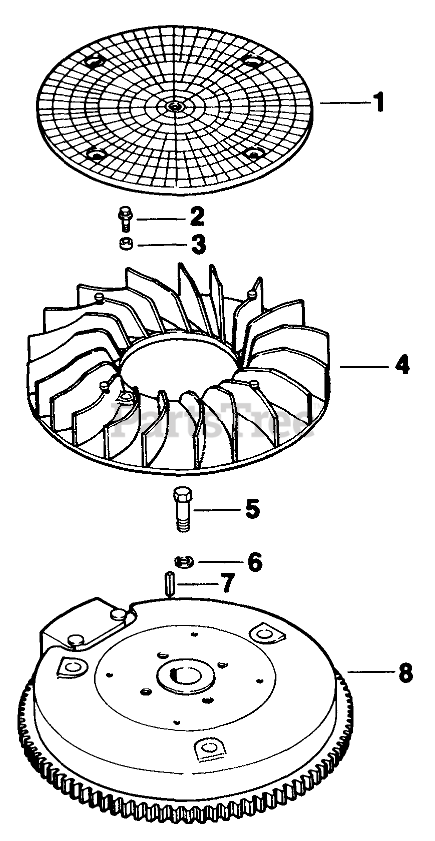

FLYWHEEL-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title
1

25_162_01

Screen-Grass

$

$

Not available

2

25_086_21

Screw-Hex Wash. Hd.

$

$

Not available

3

25_112_04

Spacer

$

$

Not available

4

25_157_01

Fan

$

$

Not available

5

Toro 25_086_24

Screw-H.C.

$

$

Currently unavailable

6

Toro 52_468_15

Washer-Flat

$

$

Currently unavailable

7

Kohler X-286-17

Key
(Superseded to X-286-17-S)

$3.49

$

In Stock, only 1 left!

0

8

Toro 52_025_36

Flywheel

$

$

Currently unavailable
