30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 039000001 - 039999999) (1993) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

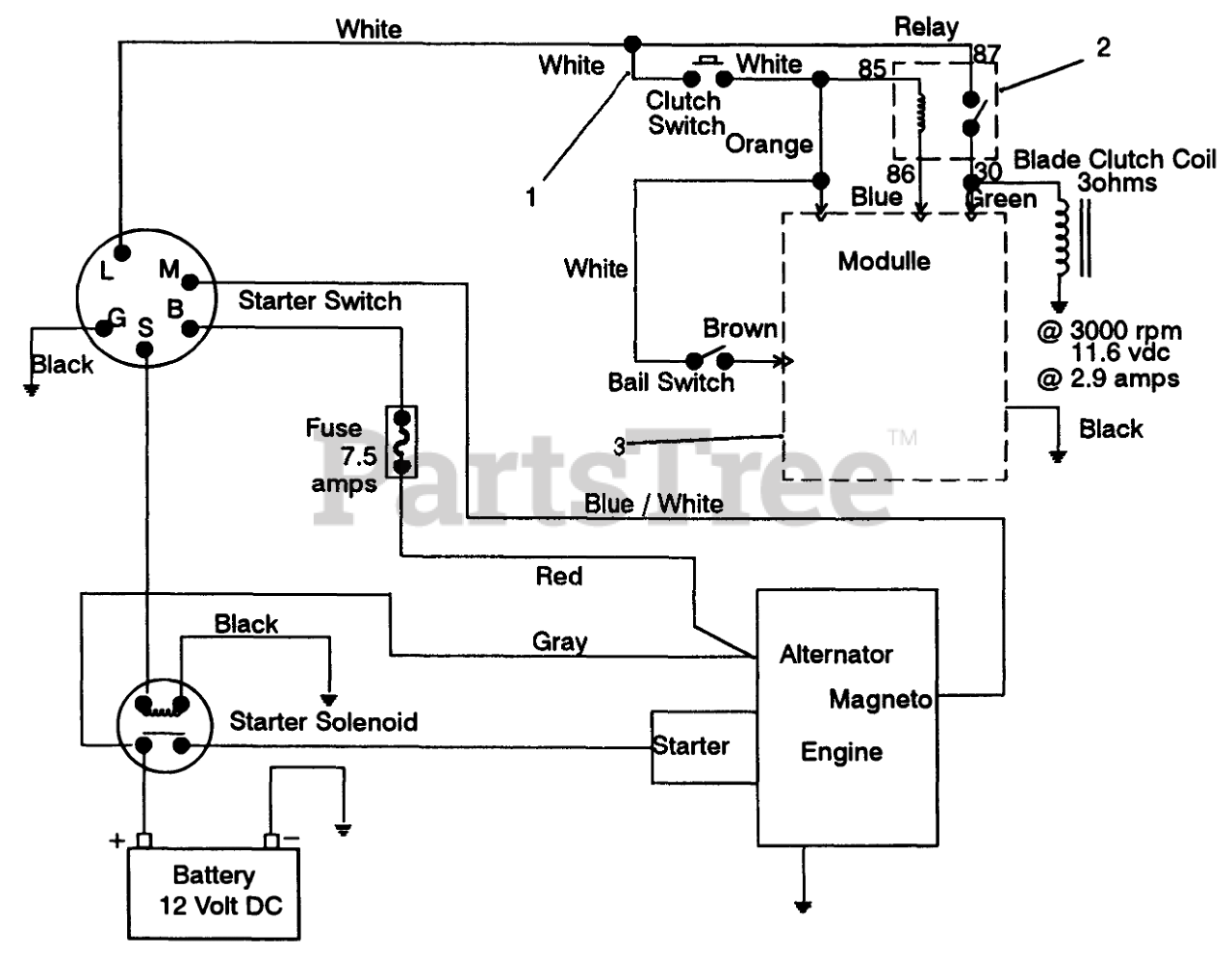

ELECTRIC SCHEMATIC Parts Diagram

  • Title
1

Toro 82-4840

WIRE HARNESS

$

$

Not available

2

Toro 63-7540

Relay
(Superseded to 63-7590)

$83.99

$

Usually ships in 3-6 days

0

3

Toro 86-7910

Module
(Superseded to 94-5818)

$

$

Not available
